Clearance IFlight Taurus X8 V2 HD FPV Drone Quadcopter with FPV Air Unit System (Without Battery)

Clearance IFlight Taurus X8 V2 HD FPV Drone Quadcopter with FPV Air Unit System (Without Battery)

{{ product.price_format }}
{{ product.origin_price_format }}
库存:
SKU:{{ product.sku }}
型号: {{ product.model }}
重量: {{ product.weight }} 千克

{{ variable.name }}

{{ value.name }}
商品详情

Description

Report this item or seller


PRODUCT DESCRIPTION

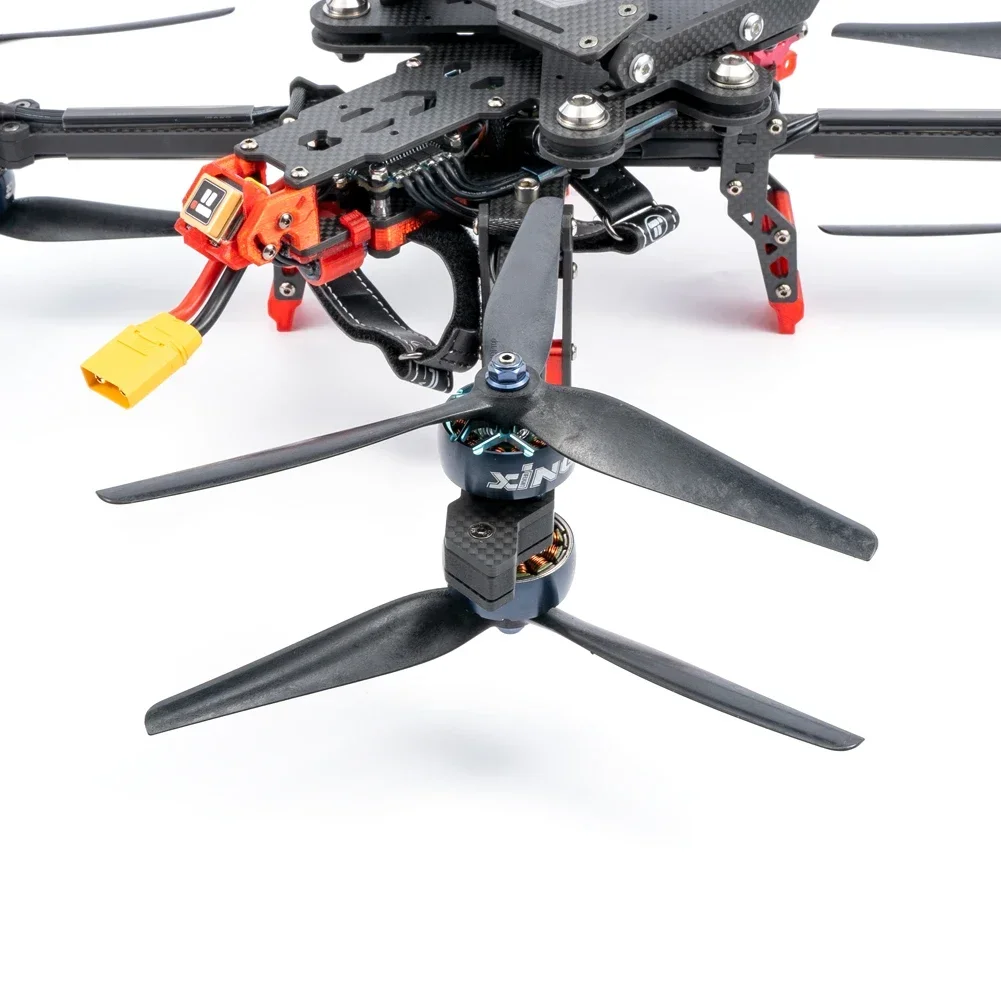

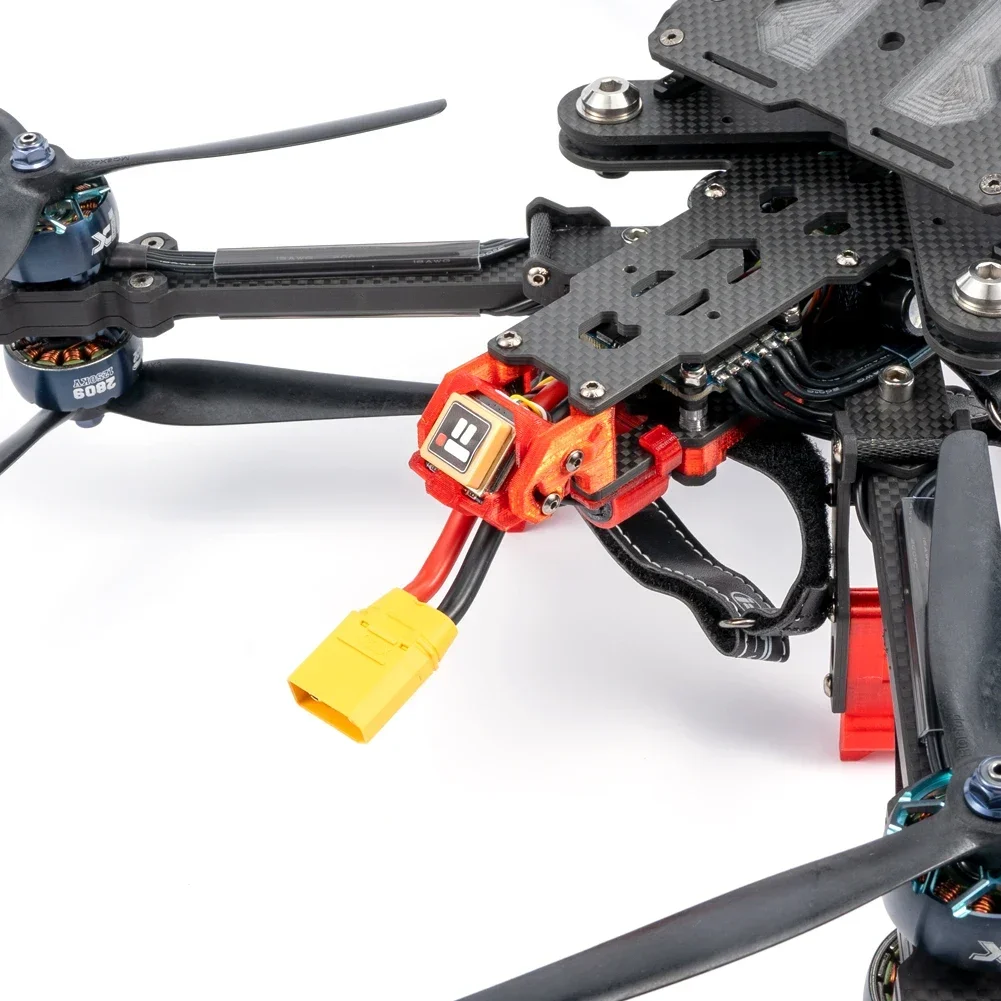

Let's introduce our new iFlight Taurus X8 V2 BNF, our heavy duty gear to lift those big cams!

Engineered with professionals for professionals, a BNF that's aimed for carrying big payloads offering a soft-damped universal platform for DSLR or cinema cameras (Red Komodo, Zcam, BMPCC,  etc) featuring DJI's FPV HD transmission system. Redundant ESC and motor setup for maximum performance but also a safety factor. Even in case of an overload or failure, one remaining ESC and 4 motors will be able to carry your expensive camera back to you. In case you get troubles with signal interference, radio signal loss, or complete FPV transmission fail the GPS rescue feature will automatically take over control, climb to max flight altitude, and descent towards your liftoff location until the signal transmission is regained (no automated landing). The integrated TPU landing gear provides sufficient height for most terrain and offers some protection on harder landings.

2kg maximum payload for a variety of top-mounted cameras and the ability to fine-adjust the stable mount for a perfectly balanced CG (Center of Gravity). The underslung battery acts as a power source as well as a counterweight to strategically slide the weight more front or back to counter camera lenses of different weight or length. The adjustable CNC aluminum mount offers angles from 5 to 35 degrees and can be safely secured for reproducible outcomes. No jello, no jitter, no problem; Our silicon-ball dampened carbon camera base is decoupled from the rest of the frame to reduce the amount of vibration generated by motors and propellers. For the perfect cinematic shot we recommend and additional software stabilization in the post or a hardware module (for example SteadXP).

The estimated flight time with 6S 4400mAh and attached cinema camera is about 4-6min, depending on speed and wind conditions! (set includes one battery)

Test data:

Flight time with 4400mAh 6S:
- No camera installed: 8min
- Installed camera: 4-6min

Maximum speed:
- Low payload: 130km/h
- High payload: 100km/h

Payload:
- Maximum payload: 2kg
- Recommended payload: 1-1.3kg



Features:

  • Optimized CG through the adjustable camera and battery mount

  • 2kg max payload for various cinema and DSLR cameras

  • XING 2809 efficient and powerful wide stator motors

  • Stable silicon-ball decoupled camera CNC mount

  • Redundant ESC and motor configuration

  • GPS flight data and rescue functionality




Taurus X8 V2 BNF Specs:

  • Top and bottom plate spacing: 20-31mm (aluminum standoff height)

  • GPS module: iFlight M8Q-5883-GPS & Compass V2.0

  • BLITZ F7 Flight Controller

  • Weight: 5.58kg (without battery)

  • Motor: XING 2809 1250KV

  • Body Size: 283*283mmmm

  • Wheelbase: 400mm

  • Propeller size: 8 inch

FC // BLITZ F7 Flight Controller

  • Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

  • Smartaudio / IRC Tramp VTX protocol supported

  • Firmware target: IFLIGHT_BLITZ_F722

  • Motor outputs: 4x (SH1.0 connector)

  • Flash: 32MB (Blackbox flash)

  • I2C serial: SDA / SLA pads

  • Dimensions: 36.5*35 mm

  • Barometer: DPS310

  • OSD Chip: AT7456E

  • LED controller: Yes

  • MCU: STM32 F722

  • Beeper pad: Yes

  • Gyro: BMI270

  • Weight: 7.8g

  • UARTS: 6

ESC // 2x SucceX 80A 2-8S 4in1

  • Supports up to Dshot600, Proshot, Oneshot, Multishot

  • Mounting pattern: 30.5*30.5mm/Φ3mm

  • Firmware Target: iFlight-BL32-4IN1

  • Up to 48kHz PWM frequency

  • Constant: 80A / Burst: 100A

  • Capacitance: 470uF/50V

  • BlHeli32 telemetry: Yes

  • Current Sensor: Yes

  • MCU: STM32F051

  • Input: 2-8S LIPO

  • Weight:18.6g

  • BEC: No

Taurus X8 V2 HD BNF Included Components and Parts (Without battery)

  • 8 x HQ 8X4X3 CW propeller + 8 x HQ 8X4X3 CW propeller (Color may vary)

  • 4 x Albatross LHCP 5.8GHz SMA FPV Antenna

  • 4 x iFlight Lipo Strap 20*300mm (Black)

  • 2 x iFlight Lipo Strap 20*400mm (Black)

  • 2 x iFlight Lipo Strap 20*500mm (Black)

  • 1 x DJI FPV Air Unit Module + Camera

  • 1 x Taurus X8 V2 Frame

  • 1 x Prop Wrench





Material: Durable plastic body
Transit Time: Not applicable as an RC drone
Video Capture Resolution: No FPV Air Unit System included
Drone Weight: Without battery, lightweight design
Controller Mode: Dual mode options (MODE1 and MODE2)
Recommend Age: Suitable for individuals 14 years and older
Anti-wind Ability: Not specified for this specific model
Indoor/Outdoor Use: Versatile for both indoor and outdoor environments
Camera Mount Type: Universal mount compatible with various cameras
Takeoff Weight: Variable with camera payload and battery configuration
Remote Distance: Not applicable with the drone
Package Includes: Original Box
Controller Battery: Not included in the package
105℃ Volatile Materials: Meets safety standards with no hazardous emissions
Aerial Photography: Not designed for this purpose, intended for cinema cameras
Remote Control: Not included in the package
Flight Time: Approximately 4-6 minutes with a 6S 4400mAh battery
Is Electric: No Battery included

**Designed for Professional Cinematography**
The IFlight Taurus X8 V2 HD FPV Drone Quadcopter is a marvel of engineering, specifically designed for professionals seeking to capture high-quality aerial footage. The drone's robust plastic construction ensures durability while the versatile universal camera mount accommodates a wide range of top-mounted cameras, including the Red Komodo, Zcam, BMPCC, and more. Whether you're capturing breathtaking landscapes or shooting compelling cinematic sequences, the Taurus X8 V2 is the perfect platform to elevate your aerial imagery.
**Robust and Reliable Performance**
Equipped with redundant ESC and motor setups, the Taurus X8 V2 offers a safety factor to manage unexpected failures. In case of an overload or a motor malfunction, the drone's robust design allows for continued operation with one remaining ESC and four motors, ensuring your expensive camera is safely delivered back to you. The drone's GPS rescue feature is a game-changer, automatically taking over control in case of signal interference, radio signal loss, or FPV transmission failures, and climbing to the maximum flight altitude before descending to the liftoff location until signal is regained.
**Advanced Features for Cinematic Excellence**
The Taurus X8 V2 boasts an adjustable CNC aluminum mount that can angle from 5 to 35 degrees, ensuring a perfectly balanced Center of Gravity (CG) for a variety of camera setups. Its silicon-ball dampened carbon camera base is designed to reduce vibration, providing a stable platform for capturing smooth footage. For even more stabilization, the drone can be paired with additional software or hardware modules, such as SteadXP, to achieve professional-grade cinematic shots. The Taurus X8 V2's flight time with a 6S 4400mAh battery is approximately 4-6 minutes, perfect for capturing extended footage in various conditions.
