Technical parameters | Overall Dimension(L*W*H) | 2400*1300*2000 |
Passengers Capacity | 6 | |
Max.Speed(km/h) | 30 or Negotiatable | |
Max.Travelling Range(km) | 80~100 | |
Slope Climbing Capacity | 30% | |
Turning Radius(m) | 4.6 | |
Minimum Ground Clearance(mm) | 150 | |
Brake Distance(m) | ≤5m | |
Wheelbase(mm) | 2400 | |
Front/Rear Tread(mm) | Front 900mm / Rear 1000mm | |
Weight(kg) | 620 | |
Electric system | Motor power (kw) | 3.5/4/5kw or customized |
Electric Controller | Fully Intelligent Controller | |
Battery type | Lead acid and lithium batteries can choose | |
Charger | Intelligent high-frequency car charger | |
Charging time(h) | 8~10 | |
Charging input voltage | 220V/110V | |
Chassis system | Suspension | Front Torsion Beam Suspension+Integral rear axle high strength steel plate spring cartridge or customized |
Brake system | Drum hydraulic brake, double-circuit hydraulic brake and parking brake device or customized | |
Steering | "Rack&Pinoin"Steering | |
Motion transfer system | Continuously variable transmission | |
Drive mode | Rear drive | |

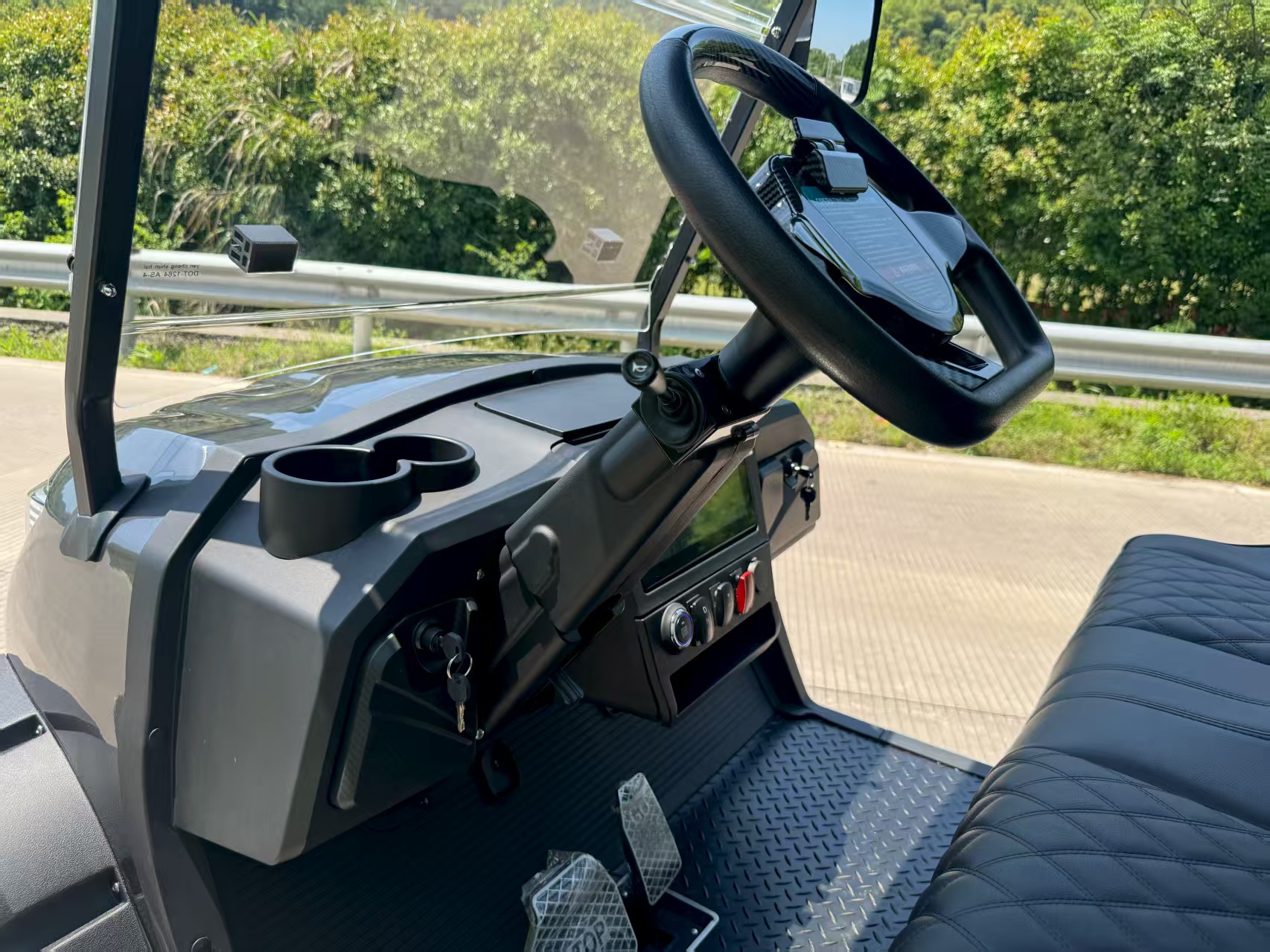

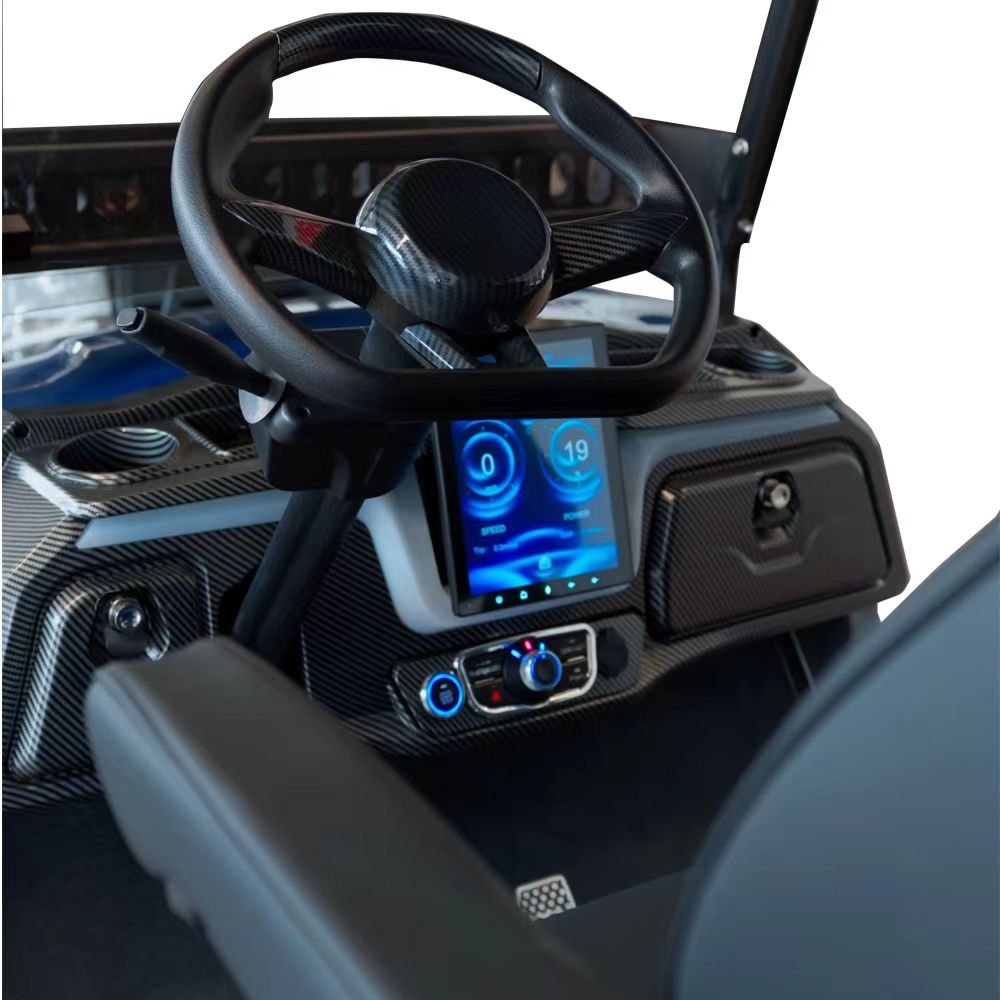

Exterior | Dashboard | Multi-function smart display(Bluetooth-radio-movie etc.) |
Light | LED combined headlights,turn signals,combined rear taillights,brake lights and electric | |
Seat | Joint row seats (leather fabric+high resilience PU seats) | |
Body material | Steel frame+injection shell /ABS engineering plastic molded parts | |
Wheel | 10/12/14inch iron/aluminum wheels options | |
Tire | Road and off-road tire options |
