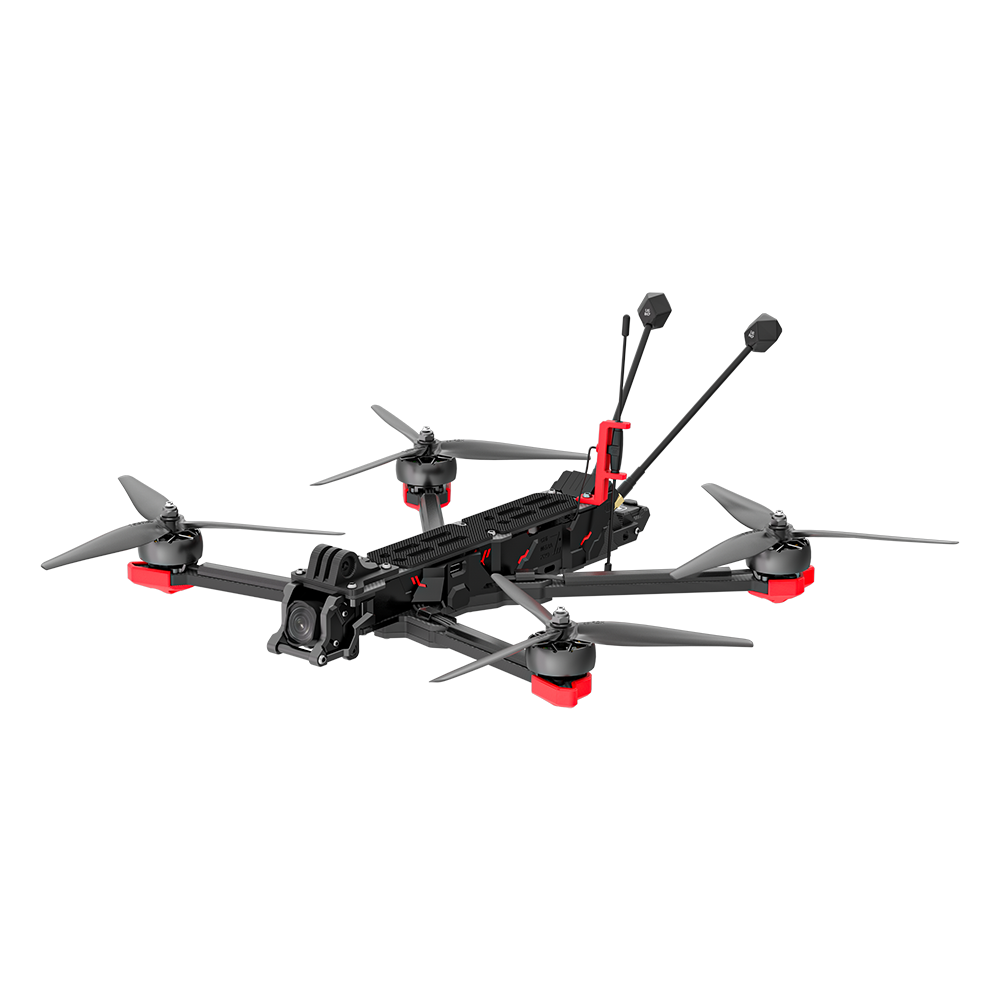

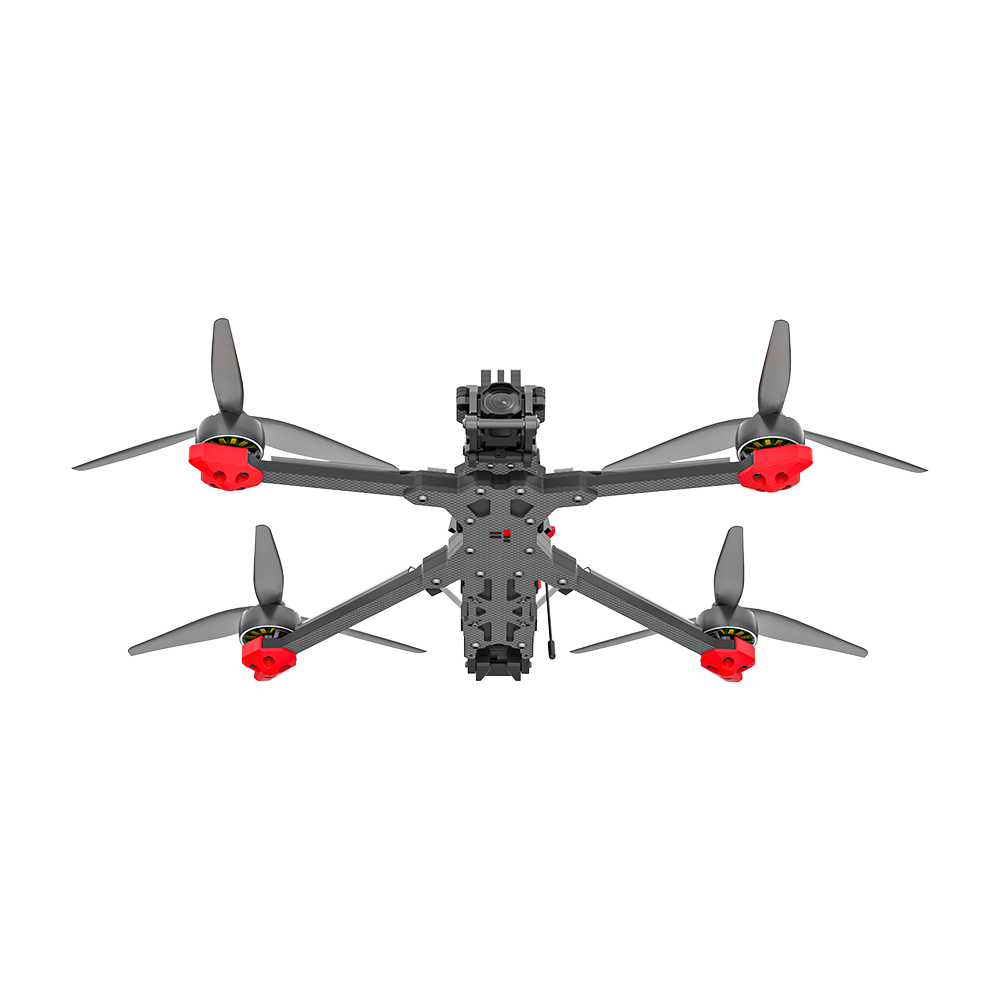

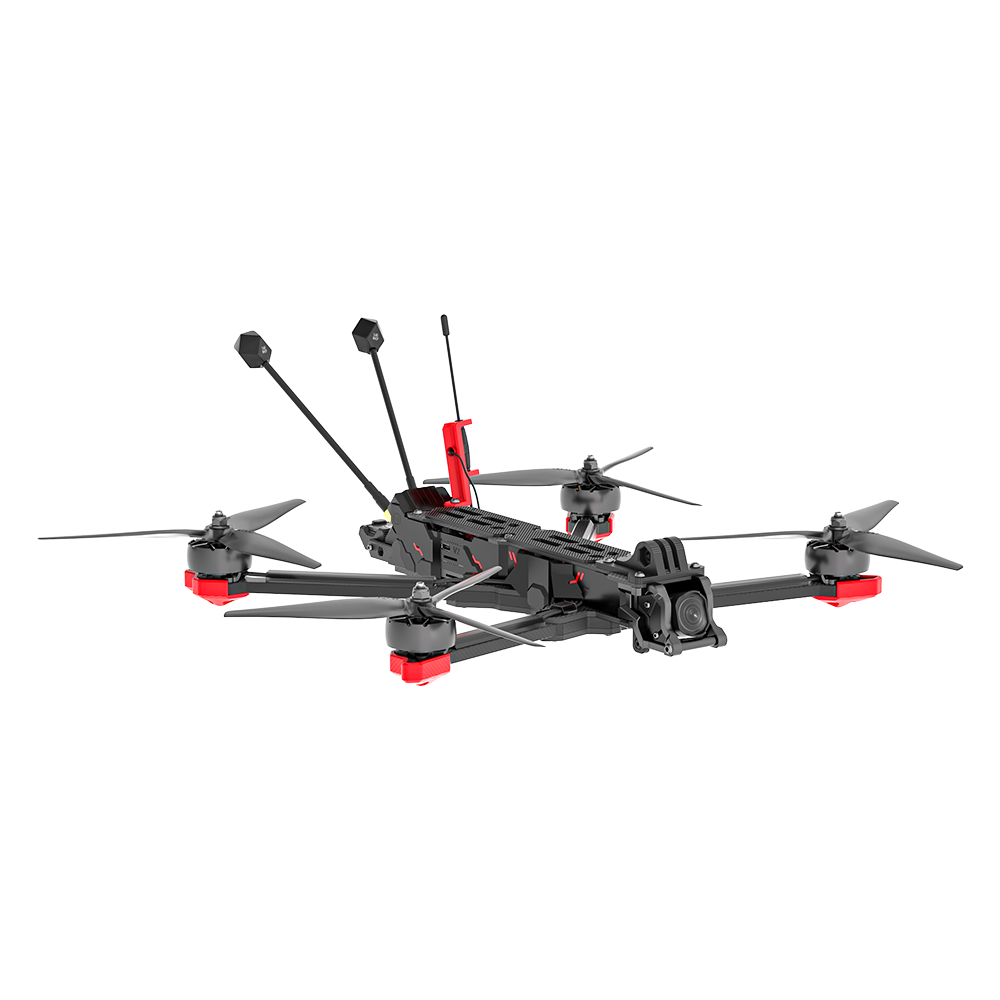

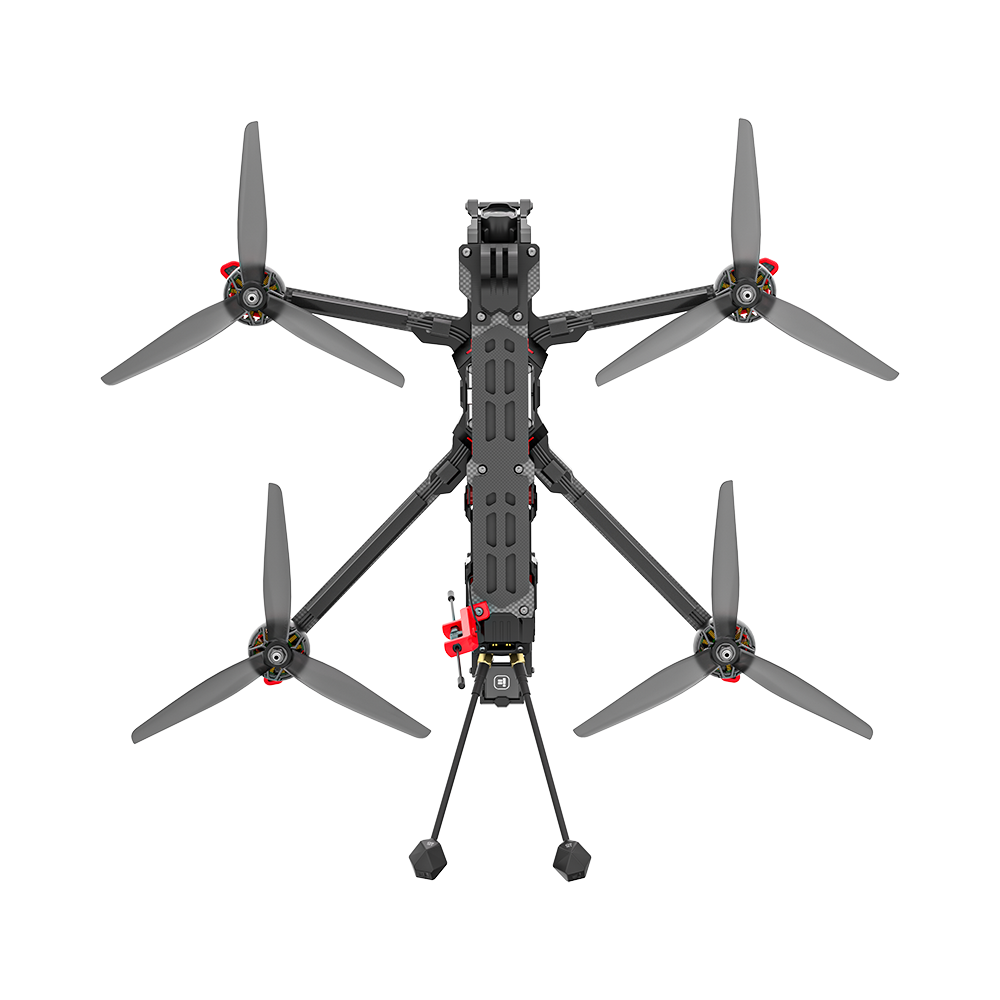

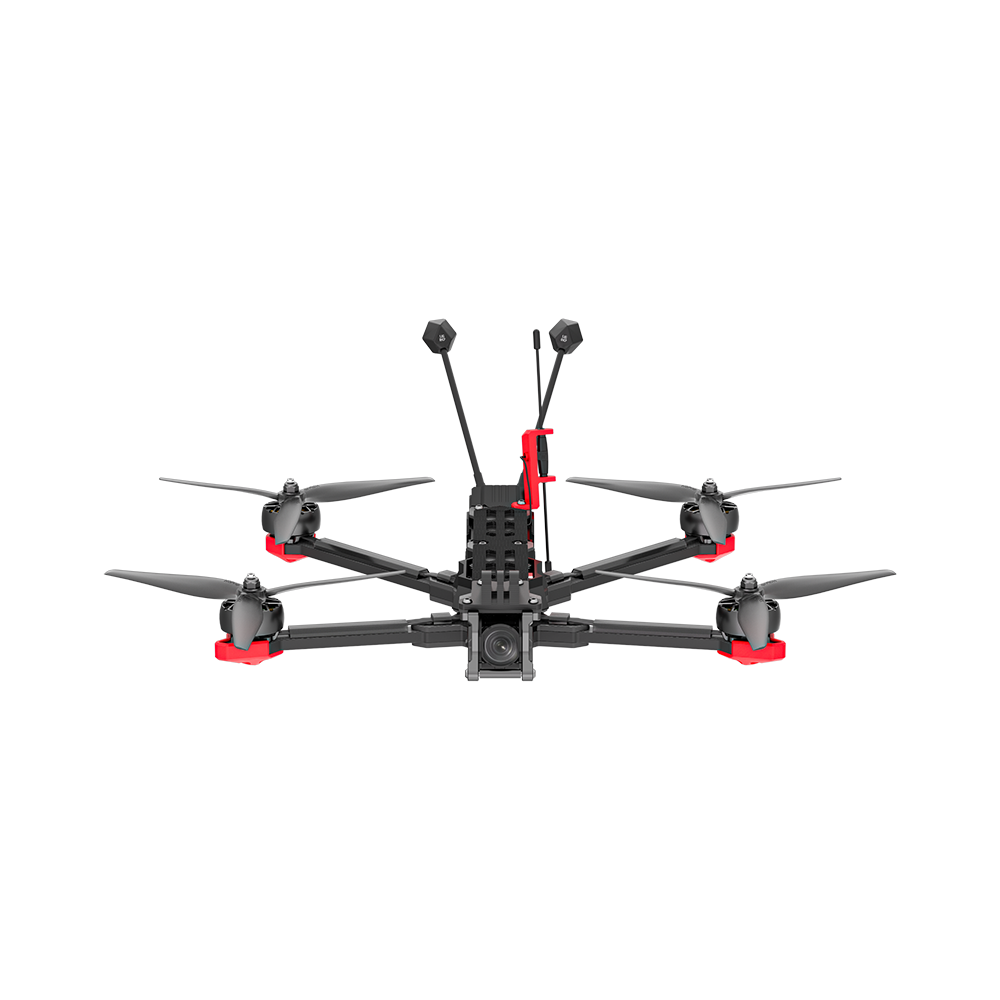

IFlight Chimera7 Pro V2 O4 6S HD Long Range Quadcopter FPV Drone - F722 55A XING2 2809 1250KV O4 Pro Air Unit

Description

The KING of Long Range FPV. Featuring the all-new DJI O4 Air Unit, it delivers exceptional perspective and extended flight distance. This super-efficient iFlight 7.5-inch long-range marvel opens up previously unreachable destinations, capable of carrying larger batteries to extend your flight time-ideal for an adventure like surfing the Swiss Alps. With a super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5-inch prop control, you can fly big batteries top-mounted or even larger ones bottom-mounted.

Highlights

Smooth and Powerful XING2 Motors

The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Latest Chimera7 Pro Frame for Maximum Protection

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

O4 Video Transmission, Enhanced Perception

DJI O4 video transmission's enhanced stability lets you fully immerse yourself in each flight and provides greater safety. It boasts up to 13 km of maximum video transmission distance, a transmission latency as low as 24 ms, 1080p/100fps high-definition image quality, and a maximum transmission bitrate of 60Mbps. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle

Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Secured Battery Plug with Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We've added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

GPS Pre-Installed for More Safety at A Distance

GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.

Specificaiton

Product Name: Chimera7 Pro V2 6S HD

Geometry: DC (DeadCat)

FC: BLITZ F722 Flight Controller

ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission: DJI O4 Pro Air Unit

Frame: 327mm±2mm wheelbase

Motor: XING2 2809 1250KV motors

Prop: HQ 7.5X3.7X3 propellers

Weight: 725±5g

Takeoff Weight incl. 8000mAH: Approx. 1621±5g

Dimensions (L×W×H):270*199*34±2mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 3200 m

Max Hover Time: Approx. 30 mins (No load With 21700 6S 8000mAh)

Operating Temperature Range: -10° to 40° C

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4, Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Packing List

1 x Chimera7 Pro V2 6S O4 HD

2 x Battery pad

2 x 7.5 inch Prop(Pairs)

2 x Battery strap

1 x Screw bag

Compatibility

DJI Goggles 3 / DJI Goggles N3+ DJI FPV Remote Controller 3

DJI Goggles 2 / DJI Goggles Integra+ DJI FPV remote control 2

(Or another Radio to match the RX in the Drone)

The flight control firmware needs to be configured to support the SBUS protocol in order to use the DJI FPV remote controller.

Material: Composite MaterialnElectricity: No BatterynRecommend Age: 14+ynVideo Transmission: DJI O4 Air UnitnMotors: XING2 2809 1250KVnFrame: Chimera 7 Pro V2 O4 Pro Air Unitnnn|Iflight Chimera 7 Pro V2|nn**Unmatched Long Range Capability**nThe IFlight Chimera7 Pro V2 O4 6S HD Long Range Quad is the epitome of aerial adventure, designed for pilots who crave extended flights and unparalleled perspectives. With its robust DJI O4 Air Unit, this quadcopter offers a transmission distance of up to 13 kilometers, ensuring pilots can explore vast terrains with confidence. The O4 Air Unit is not only powerful but also reliable, boasting a latency as low as 24 ms, providing pilots with a near-instantaneous view of their surroundings. Whether you're navigating rugged landscapes or gliding above the ocean, the Chimera 7 Pro V2's HD long-range capabilities will keep you connected and in control.nn**Robust Construction for the Adventurous Pilot**nThe Chimera 7 Pro V2's frame is meticulously crafted to withstand the rigors of extreme flying. The latest Chimera7 Pro Frame is engineered to reduce contamination, ensuring that your electronics stay clean and functioning optimally. The frame's strategic airflow design keeps your components cool, while the included 360-degree TPU protective parts shield against impacts. The illuminated side panels not only add a stylish touch but also serve a practical purpose by making it easier to locate your quadcopter in low-light conditions.nn**Unmatched Power and Performance**nThe Chimera 7 Pro V2 is powered by the robust XING2 2809 1250KV motors, delivering an unmatched combination of power and efficiency. The durable unibell (one-piece bell) technology and reinforced bell joint ensure long-lasting performance, while the smooth Japanese NSK bearings and center slotted N52H curved arc magnets provide a stable and responsive flight experience. Whether you're lifting large batteries for extended flights or carrying heavier payloads, the Chimera 7 Pro V2 is designed to handle it all, making it an ideal choice for pilots seeking the ultimate in long-range FPV flying.
