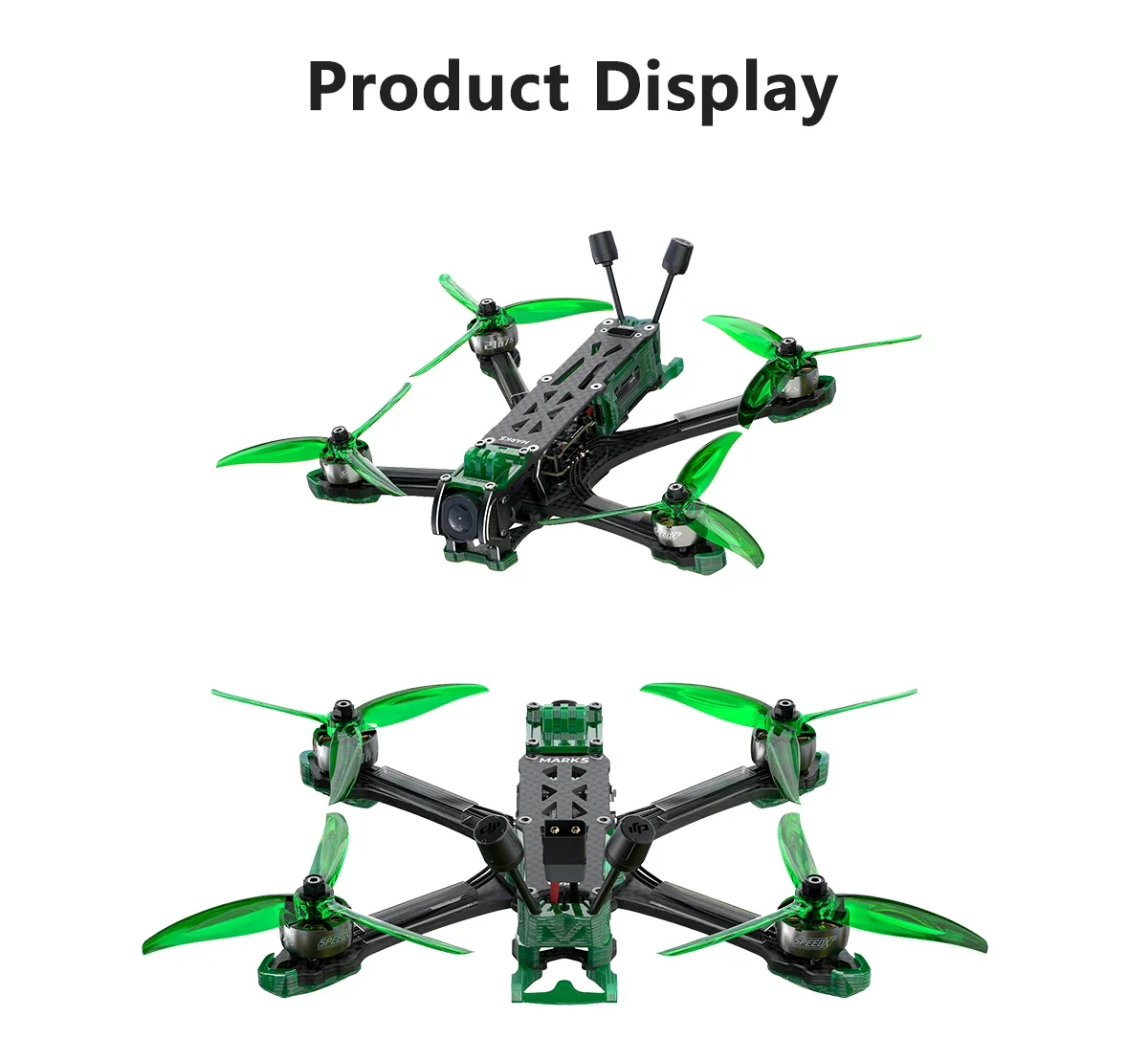

GEPRC MARK5 O4 Pro 5inch FPV Drone Freestyle Quadcopter (Wide X / DC) - F722 50A O4 Air Unit Pro 2107.5 1960KV 6S LiPo

Description

Summary

The GEPRC team developed the MARK5 O4 Pro series specifically for the O4 Air Unit Pro VTX. With its 1/1.3-inch image sensor, the O4 Air Unit Pro takes digital HD video quality to the next level, offering enhanced low-light performance and sharper visuals. It supports up to 4K 120fps recording, with real-time transmission reaching 1080P 100fps.
The MARK5 O4 Pro features a newly designed aluminum camera mount and molded silicone damping to minimize vibrations and reduce resonance for the O4 Pro camera.
Powered by the TAKER F722 BT 32Bit 50A stack and 2107.5 1960KV motors, it delivers smooth, responsive flight and ultra-stable footage.

Features

1. Equipped with O4 Air Unit Pro for clear, reliable video transmission.

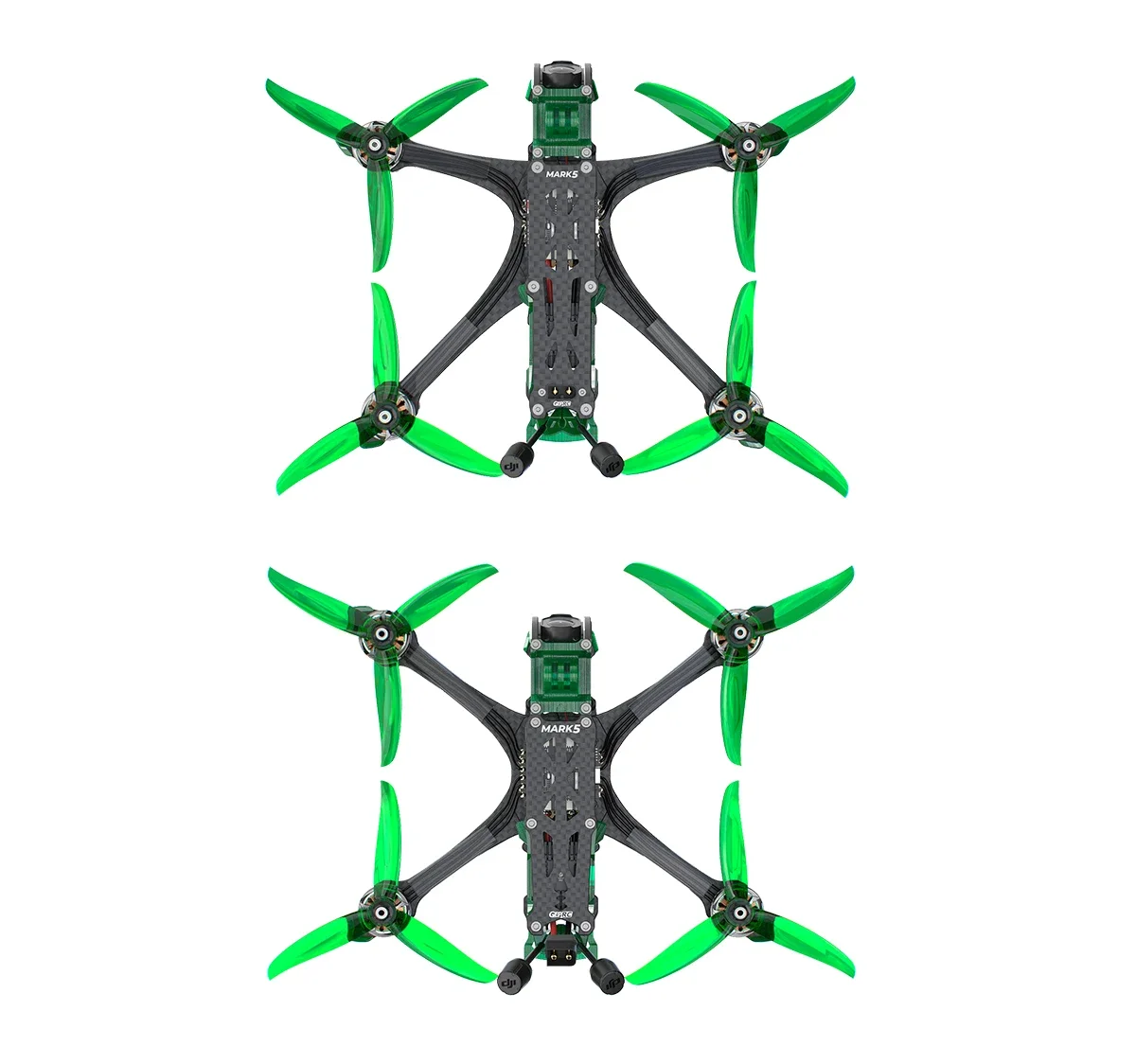

2. DC and wide-X frame options for different flying needs.
3. Paired TAKER F722 BT 32Bit 50A stack with 2107.5 1960KV motors delivers ample power.
4. Bluetooth tuning via mobile app makes adjustments effortless.
5. Quick-release arms with two-screw swap for easy maintenance.
6. Aluminum camera mount with silicone damping reduces vibration and resonance for the O4 Pro camera.

7. Dedicated compartment for the capacitor and buzzer ensures a stable, jitter-free operation.
8. Optimized frame damping reduces vibration, keeping electronics running smoothly.

Specifications-D C Version

Model: MARK5 O4 Pro DC FPV
Wheelbase: 230mm
VTX: O4 Air Unit Pro VTX module
Camera: O4 Air Unit Pro camera module
Antenna: O4 Air Unit Pro Antenna

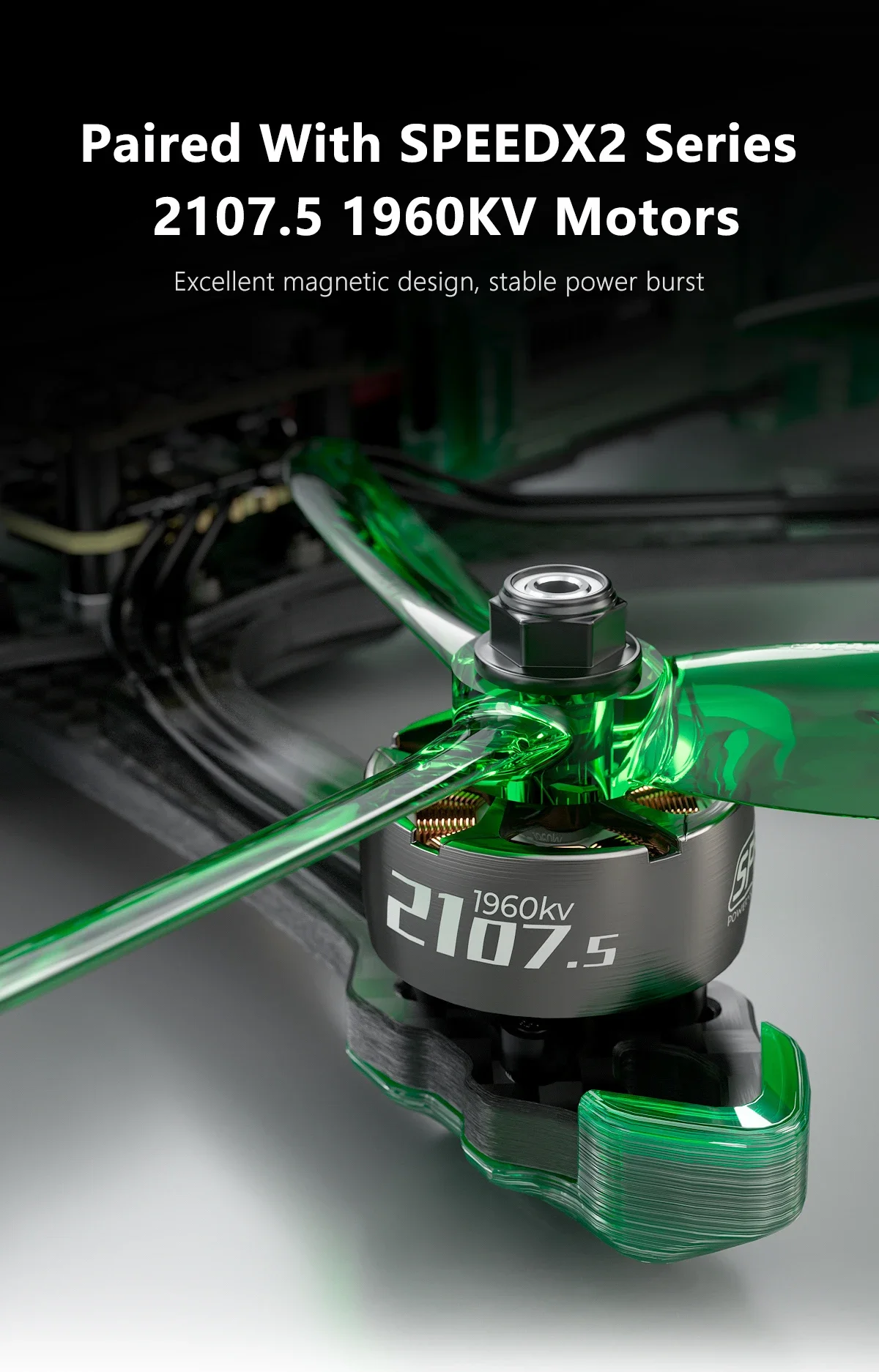

Motor: SPEEDX2 2107.5 1960KV
Prop: Gemfan 5136

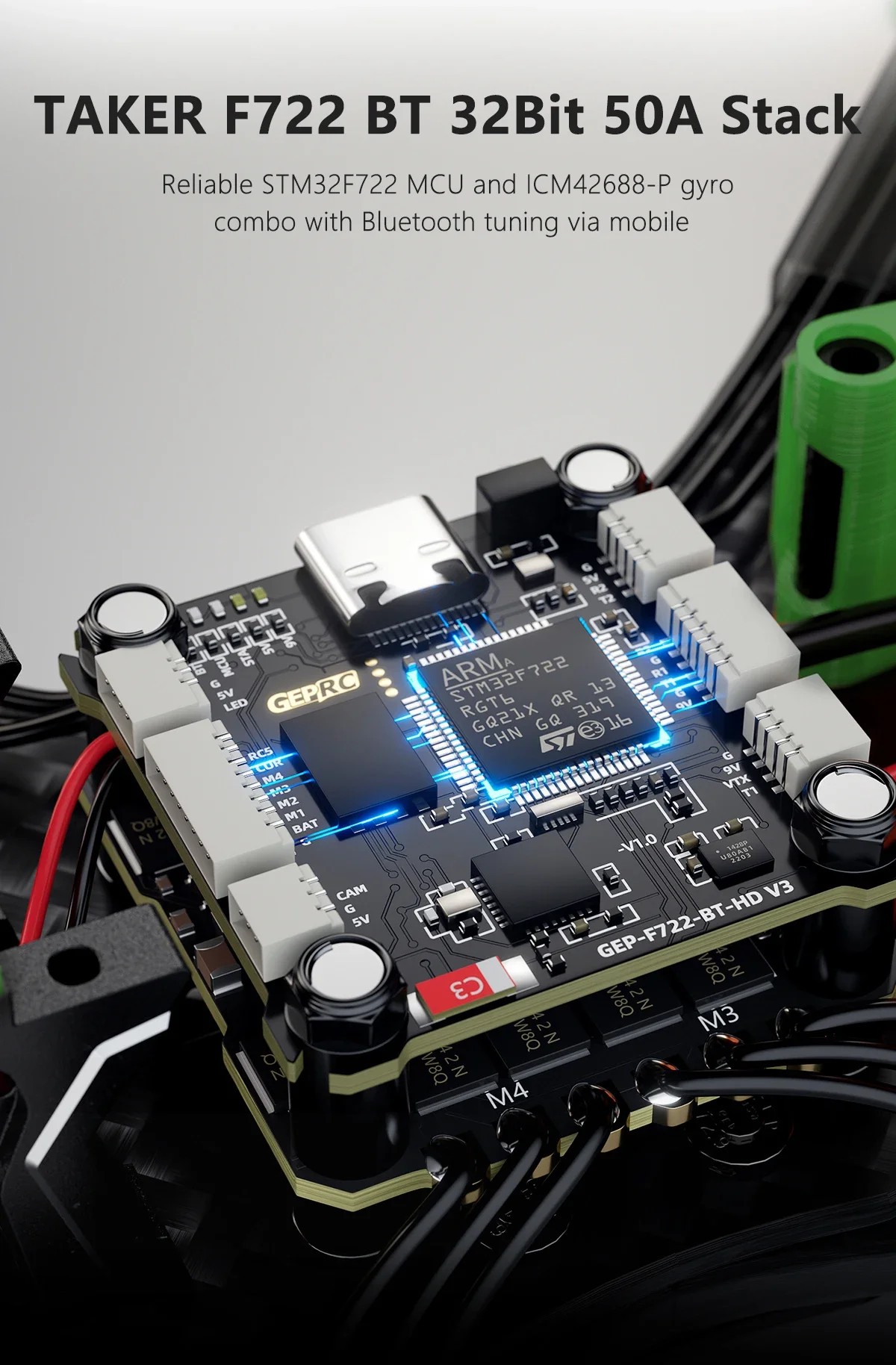

FC: GEP-F722-BT-HD V3
MCU: STM32F722
IMU: ICM42688-P(SPI)
OSD: BetaFlight OSD w / AT7456E chip
ESC: GEP-BL32 50A 96K 4IN1 ESC
Power Connector: XT60EW-M
Optional GPS：GEP-M10 GPS
Receiver: PNP / ELRS 2.4G / TBS NanoRX
Recommended battery: LiPo 6S 1050mAh-1550mAh
Printouts Color: emerald green
Weight: 433.4g ± 5g
Flight Time: 6-8 minutes（Based on slow cruising tests, the actual may vary due to product differences, firmware version, flying style, and environment. For reference only）

Specifications-wide X Version

Model: MARK5 O4 Pro Wide X FPV
Wheelbase: 225mm
VTX: O4 Air Unit Pro VTX module
Camera: O4 Air Unit Pro camera module
Antenna: O4 Air Unit Pro Antenna
Motor: SPEEDX2 2107.5 1960KV
Prop: Gemfan 5136
FC: GEP-F722-BT-HD V3
MCU: STM32F722
IMU: ICM42688-P(SPI)
OSD: BetaFlight OSD w / AT7456E chip
ESC: GEP-BL32 50A 96K 4IN1 ESC
Power Connector: XT60H-M
Receiver: PNP / ELRS 2.4G / TBS NanoRX
Recommended Battery: LiPo 6S 1050mAh-1550mAh
Printouts Color: emerald green
Weight: 414g ± 5g
Flight Time: 6-8 minutes（Based on slow cruising tests, the actual may vary due to product differences, firmware version, flying style, and environment. For reference only）

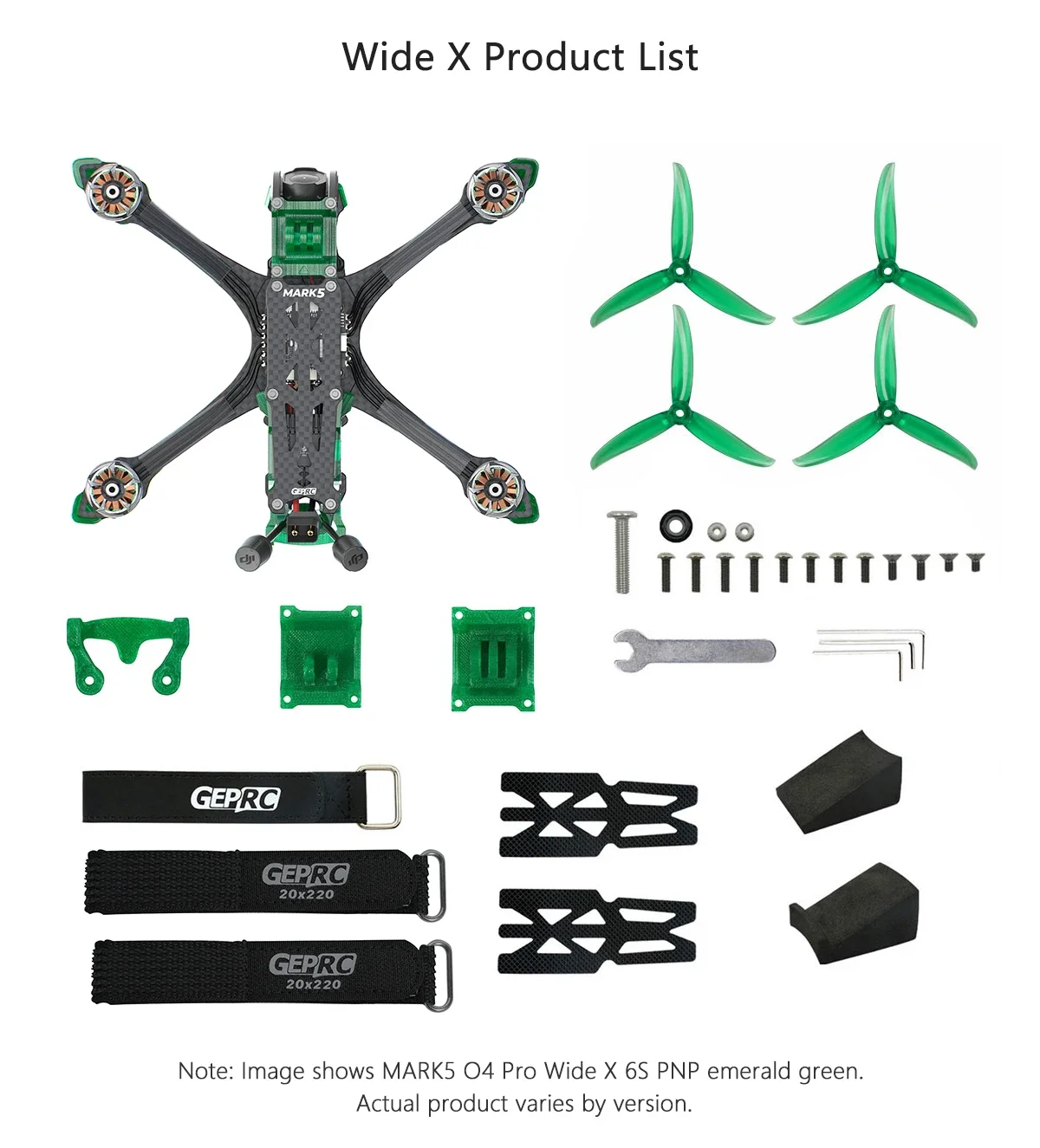

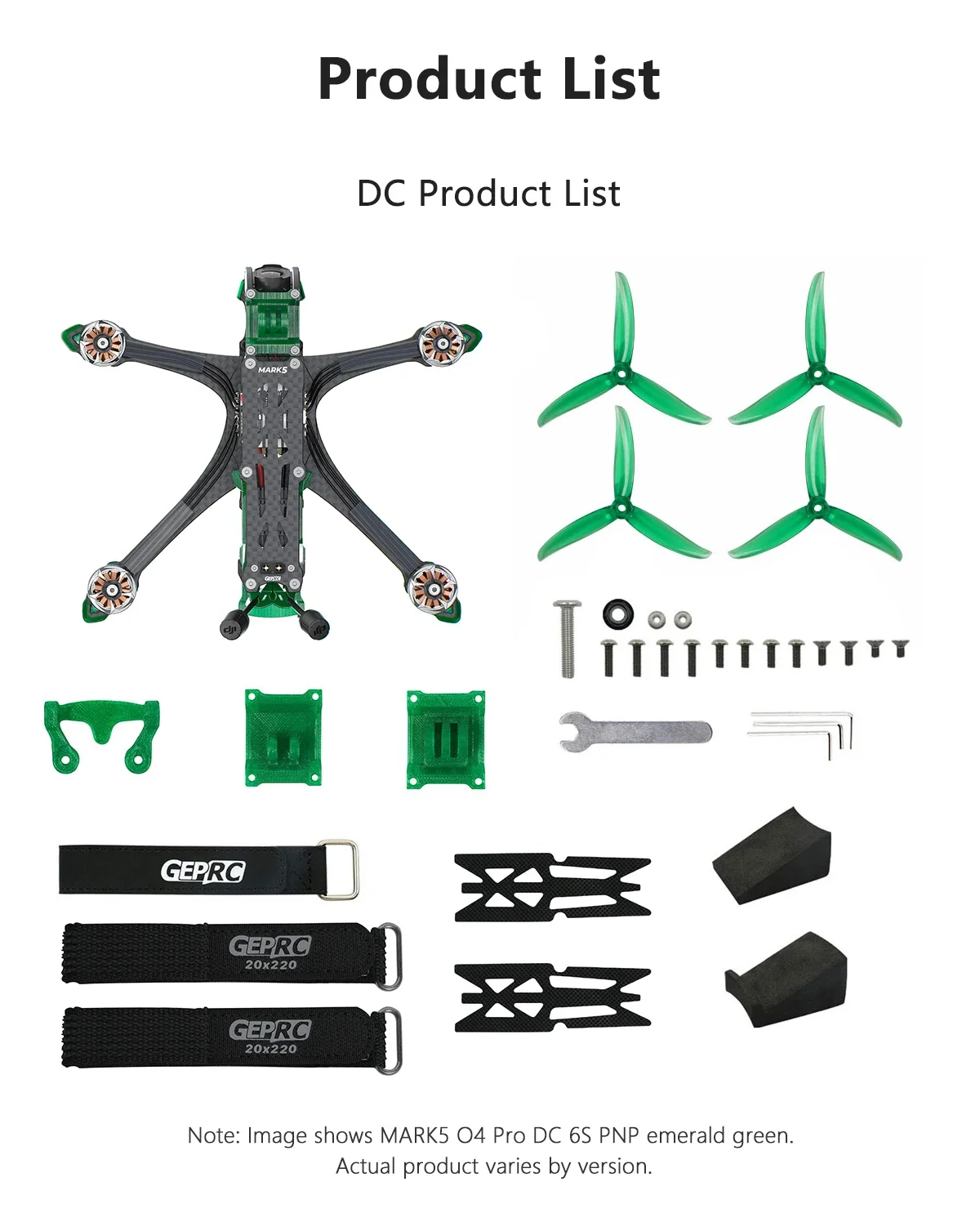

Product List

1 x GEPRC MARK5 O4 Pro FPV
1 x Gemfan 5136（2CW 2CCW）
1 x 15*250mm strap
2 x 20*250mm straps
2 x Battery anti-slip pads
1 x 3D printouts pack
1 x Spare screw pack
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x L-shaped screwdriver 3mm
1 x M8 wrench

Spare Screws Included:
1 x M5 Flange Nylon Knurled Nut
2 x M2 Stainless Steel Press-fit Nuts
1 x M5*25 Stainless Steel Button Head Hex Screw
4 x M3*10 Button Head Hex Screws
4 x M3*8 Button Head Hex Screws
2 x M3*8 Countersunk Hex Screws
2 x M3*5 Countersunk Hex Screws

Material: Composite MaterialnIs Electric: No BatterynFor Vehicle Type: HelicoptersnRecommend Age: 14+ynUse: Vehicles & Remote Control ToysnPerformance: Supports up to 4K 120fps recording, real-time transmission at 1080P 100fpsnnn|Geprc Mark 5 O4 Pro|Geprc Mark 5 O4 Pro Dc|Geprc Mark 5 O4 Pro Wide X|nn**Unmatched Video Quality & Reliability**nThe GEPRC MARK5 O4 Pro series is a testament to cutting-edge technology in the world of remote-controlled helicopters. Designed with the discerning pilot in mind, this quadcopter boasts an O4 Air Unit Pro camera module that offers stunning 4K 120fps video recording capabilities, as well as real-time transmission at 1080P 100fps. This ensures that every flight is captured in crystal-clear detail, providing an immersive and thrilling experience for both the pilot and the viewer.nn**Advanced Flight Performance**nThe GEPRC MARK5 O4 Pro is not just about image quality; it's also about performance. Powered by a TAKER F722 BT 32Bit 50A stack and 2107.5 1960KV motors, this quadcopter delivers a smooth and responsive flight, capable of handling the most demanding maneuvers. The DC and wide-X frame options cater to different flying needs, ensuring that pilots can find the perfect fit for their style and preferences. The MARK5 O4 Pro's optimized frame damping reduces vibration, keeping electronics running smoothly and extending the lifespan of the components.nn**User-Friendly & Easy Maintenance**nThe GEPRC MARK5 O4 Pro is designed for convenience and ease of use. Quick-release arms with two-screw swap make maintenance a breeze, and the dedicated compartment for the capacitor and buzzer ensures a stable, jitter-free operation. The aluminum camera mount with silicone damping minimizes vibrations and resonance for the O4 Pro camera, further enhancing the stability and reliability of the quadcopter. Whether you're a seasoned pro or a newcomer to the world of FPV, the MARK5 O4 Pro is your reliable companion for the skies.
