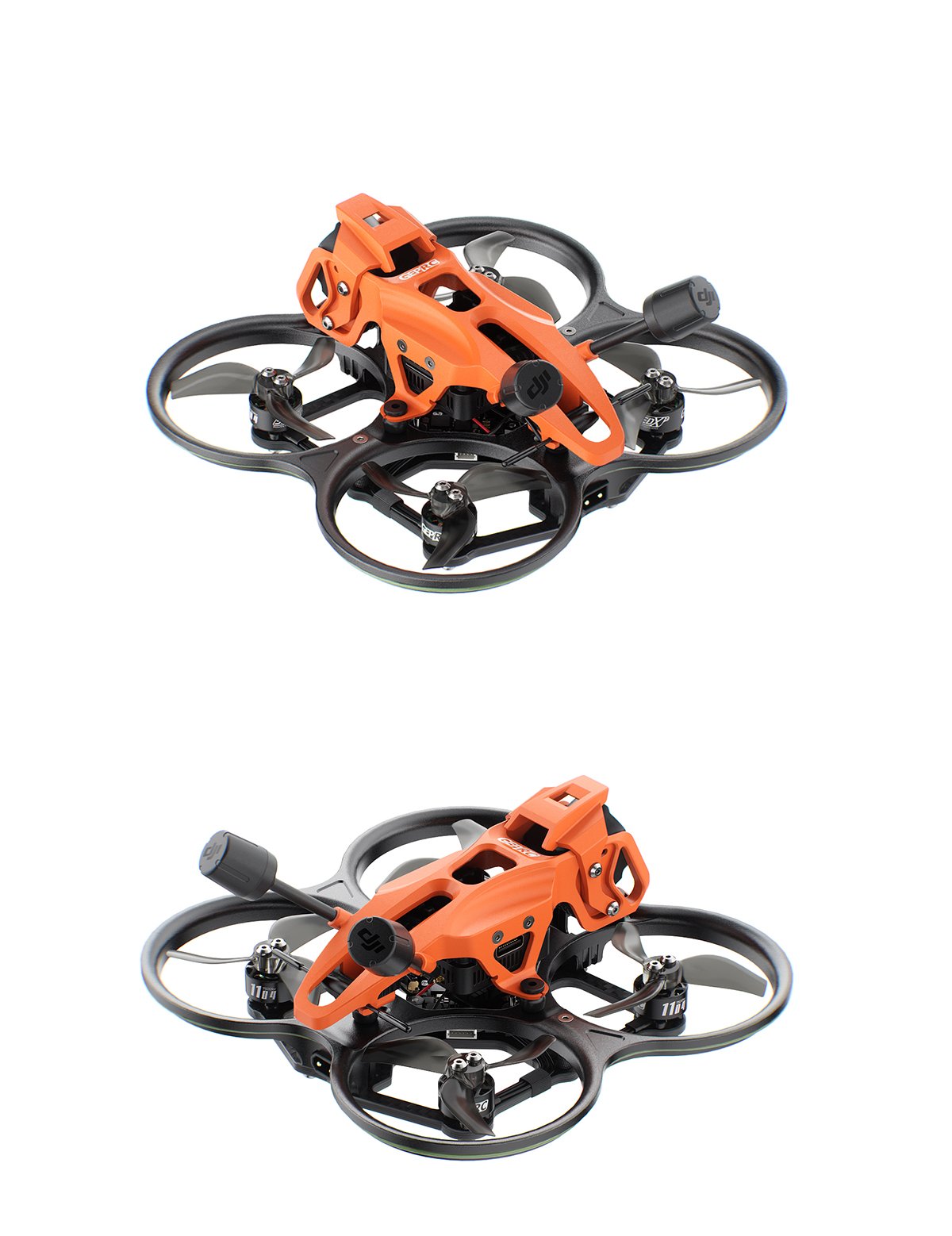

GEPRC DarkStar22 O4 Pro FPV Drone CineWhoop Quadcopter - F405 20A AIO O4 Air Unit Pro 1104 7500KV 3S

{{ product.price_format }}
{{ product.origin_price_format }}
Quantity:
SKU:{{ product.sku }}
Model: {{ product.model }}
weight: {{ product.weight }} Kilogram

{{ variable.name }}

{{ value.name }}



Summary

The DarkStar22 combines high performance with portability, equipped with the DJI O4 Pro VTX system, delivering ultra-low latency, HD stable long-range transmission.

It features the latest TAKER F405 20A ELRS2.4 2-4S AIO flight controller with an integrated receiver, eliminating the need for an additional RX and ensuring compatibility with all mainstream ELRS protocol radios. The innovative five-point floating damping system provides a stable working environment for the O4 Pro gyro, enabling smooth and stabilized video output.

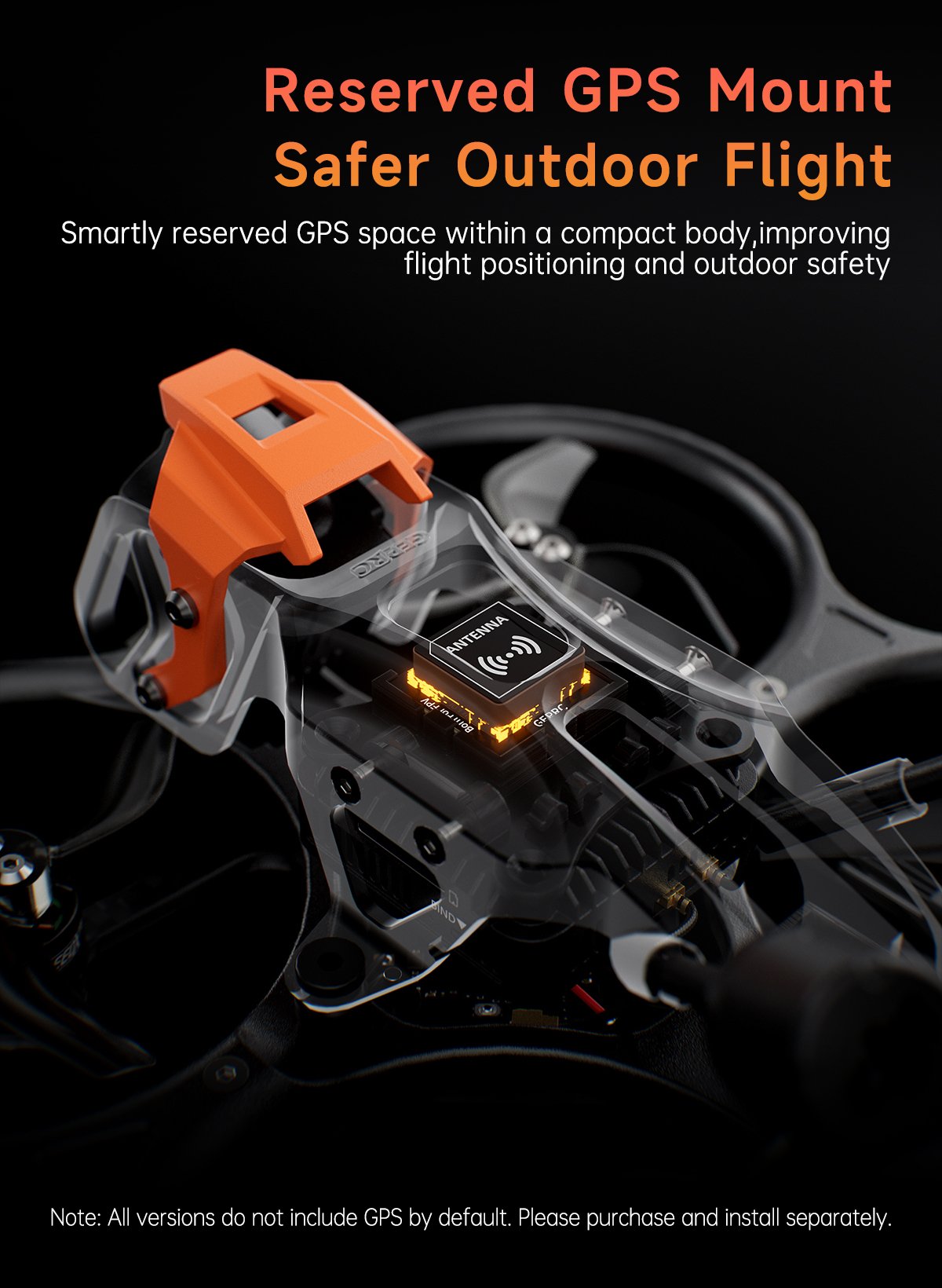

With a reserved GPS mount, pilots can enjoy safer flights in complex outdoor environments. The SPEEDX2 1104 7500KV motors, paired with newly designed high-efficiency 2219 props, deliver a strong punch while maintaining an excellent balance of power and endurance.

The entire build is compact, reinforced with a thickened canopy and prop guards for crash resistance, making it beginner-friendly and safe to fly both indoors and outdoors. Truly a performance beast among micro cinewhoops!

Feature

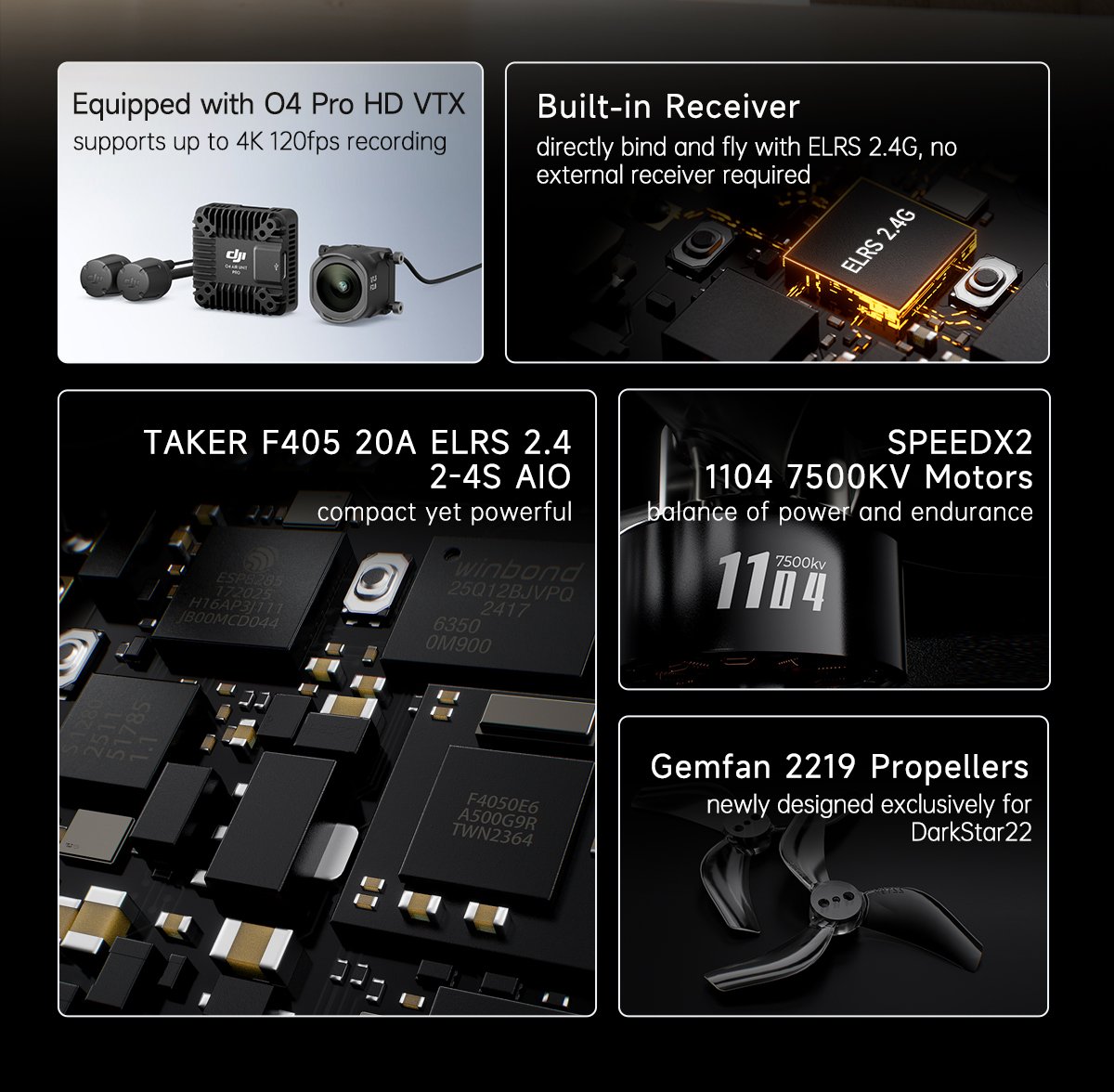

  1. Mini-sized drone with DJI O4 Pro HD system, supporting up to 4K 120fps recording.

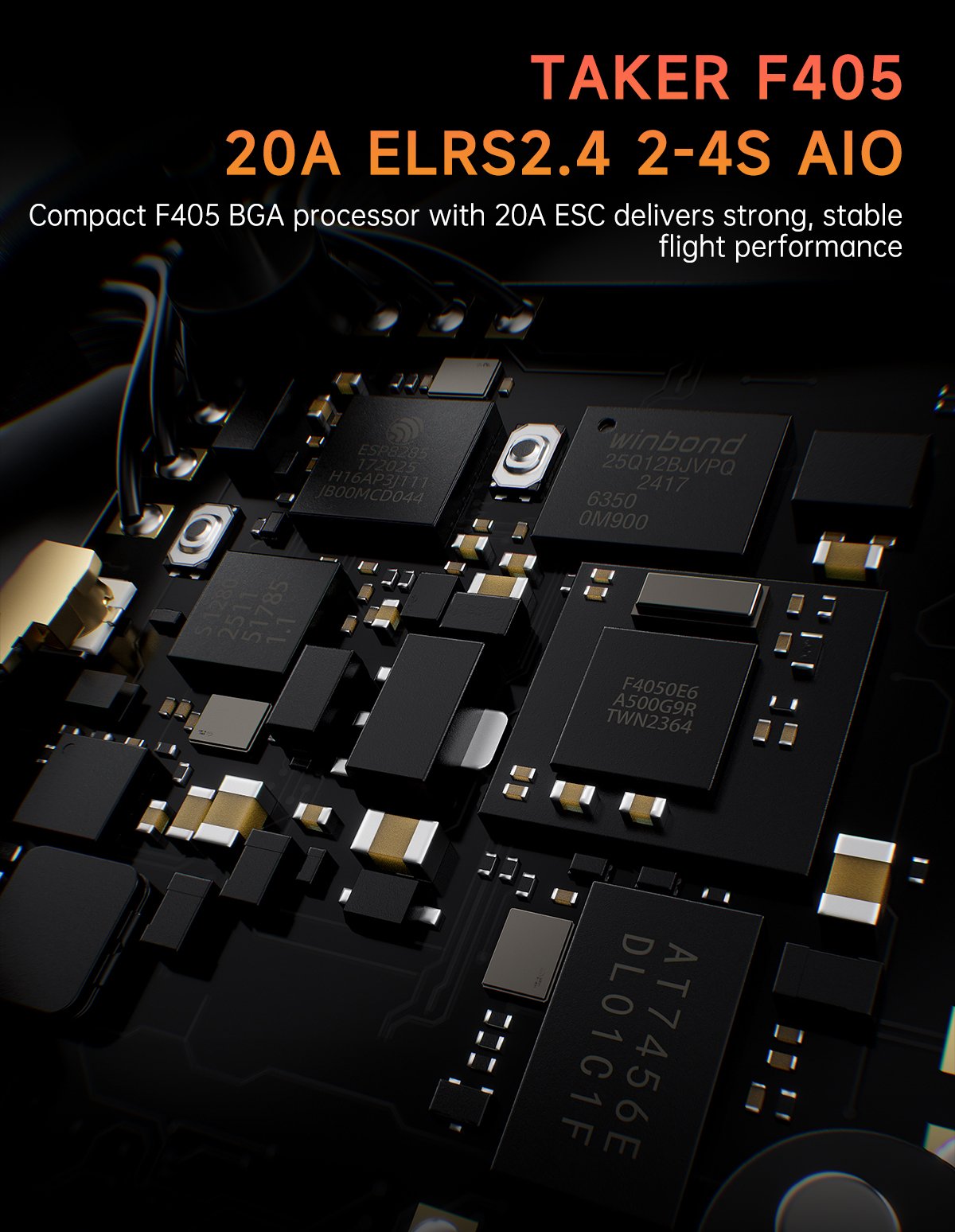

  2. Powered by the latest TAKER F405 20A ELRS2.4 2-4S AIO with integrated ELRS 2.4G receiver.
  3. Camera protection canopy effectively shields the O4 Pro camera module.

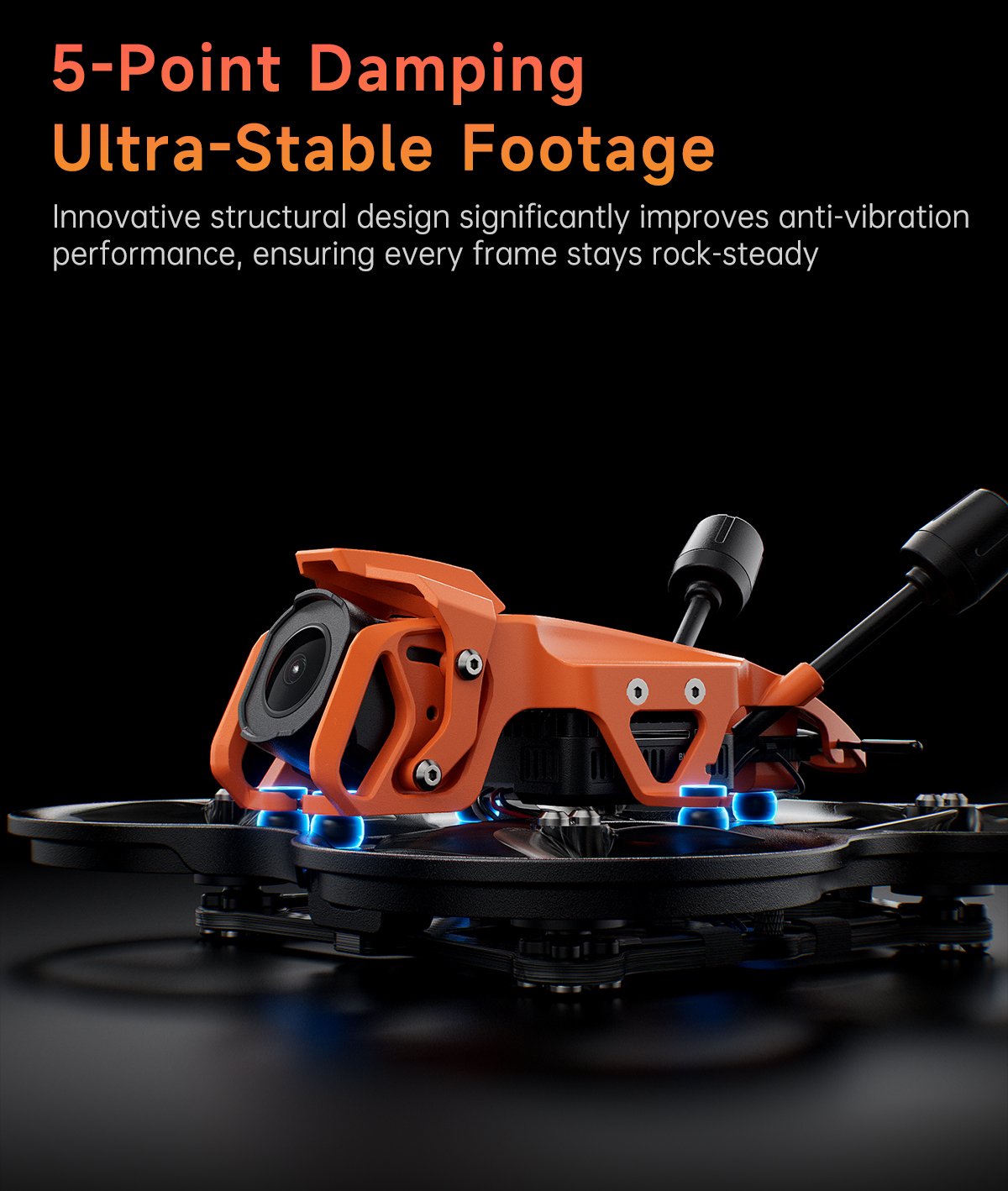

  4. All-new five-point damping design, enhancing stability for the O4 Pro camera module.
  5. Simple body structure – only 4 screws to disassemble the frame.

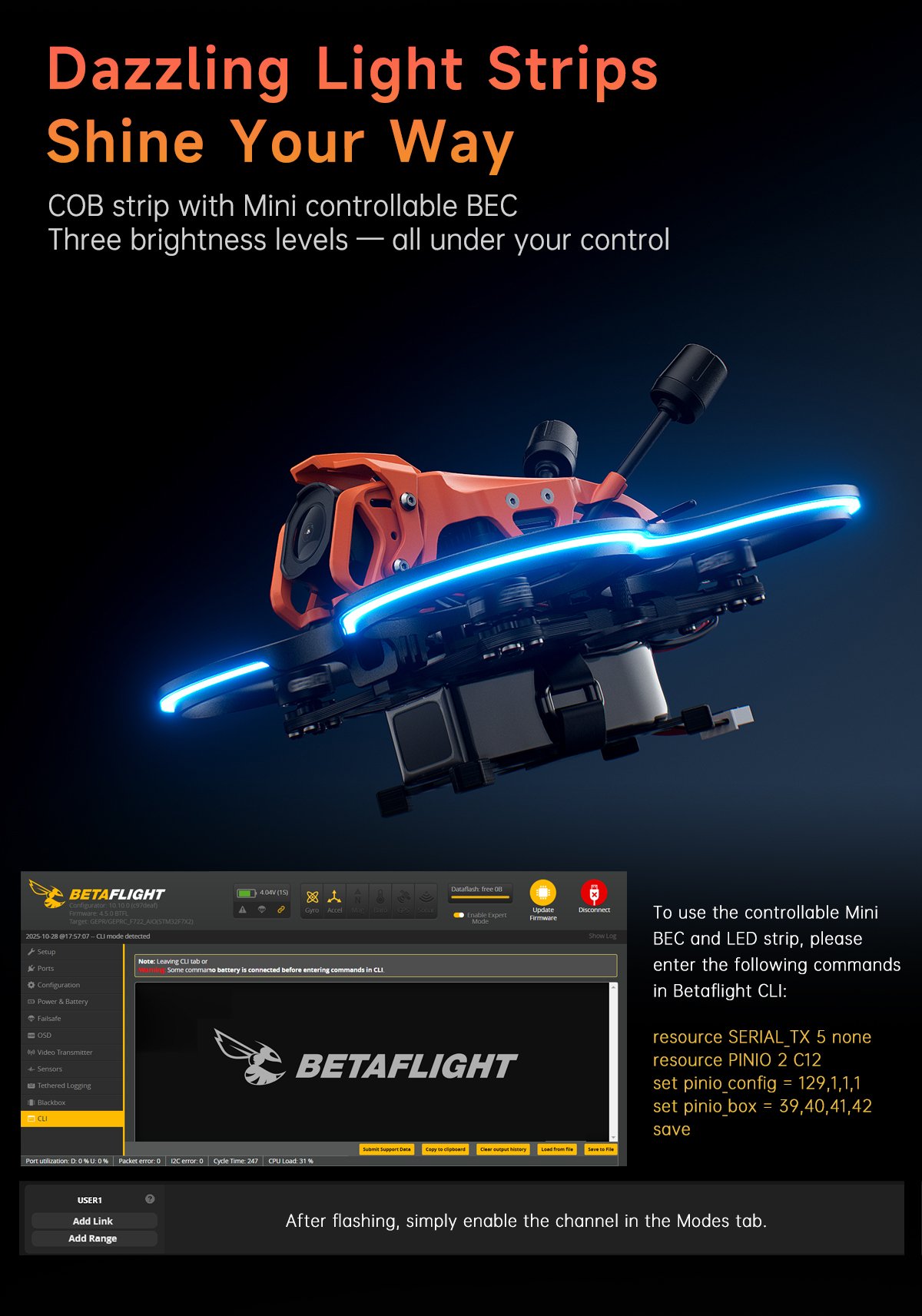

  6. LED strip powered by a mini controllable BEC – small in size, big in function.
  7. O4 Pro mounting module includes reserved GPS slot, supporting most mainstream Mini GPS modules.

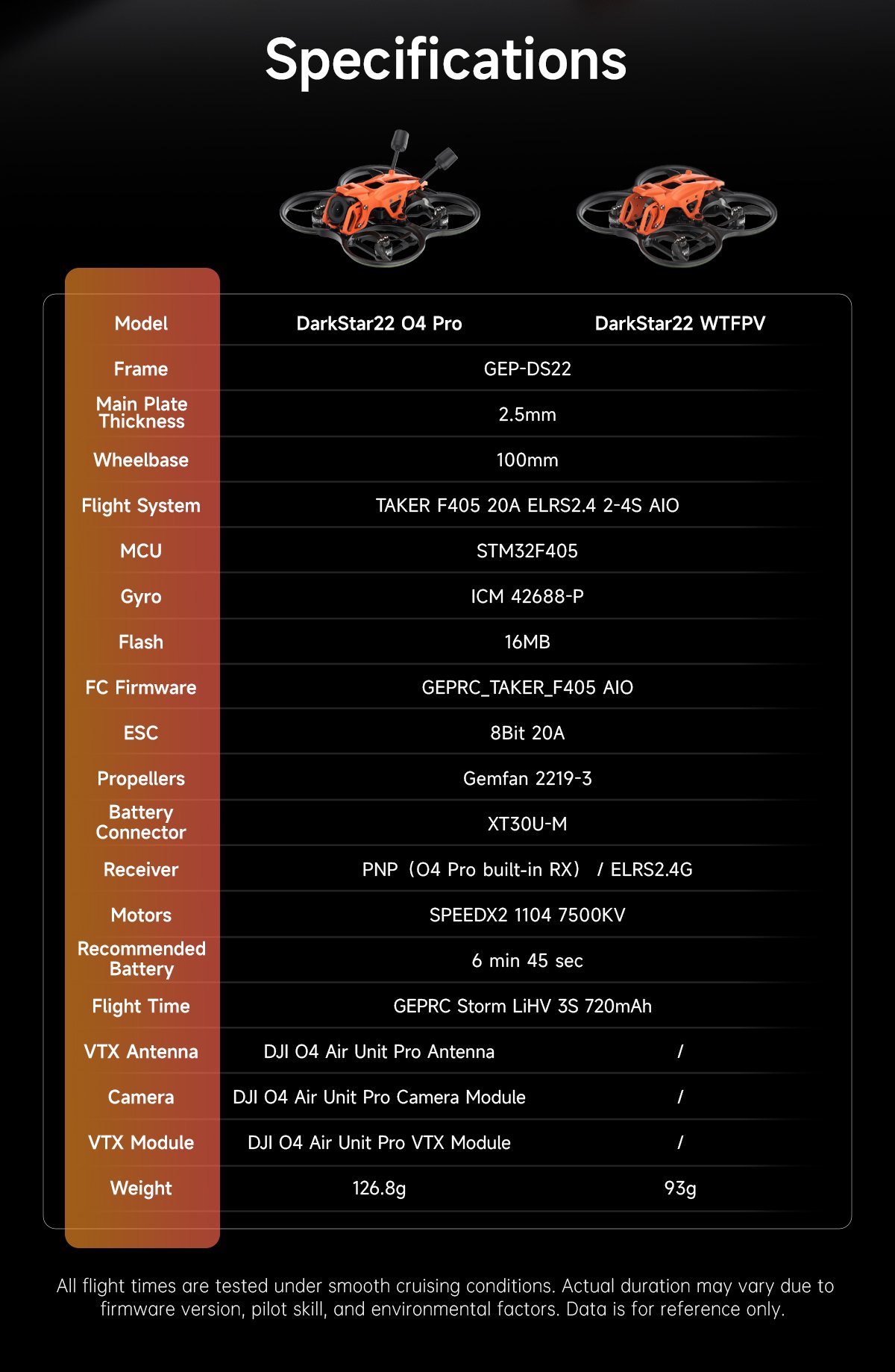

Specifications

  • Model: DarkStar22 O4 Pro
  • Frame: GEP-DS22
  • Main Carbon Plate Thickness: 2.5mm
  • Wheelbase: 100mm

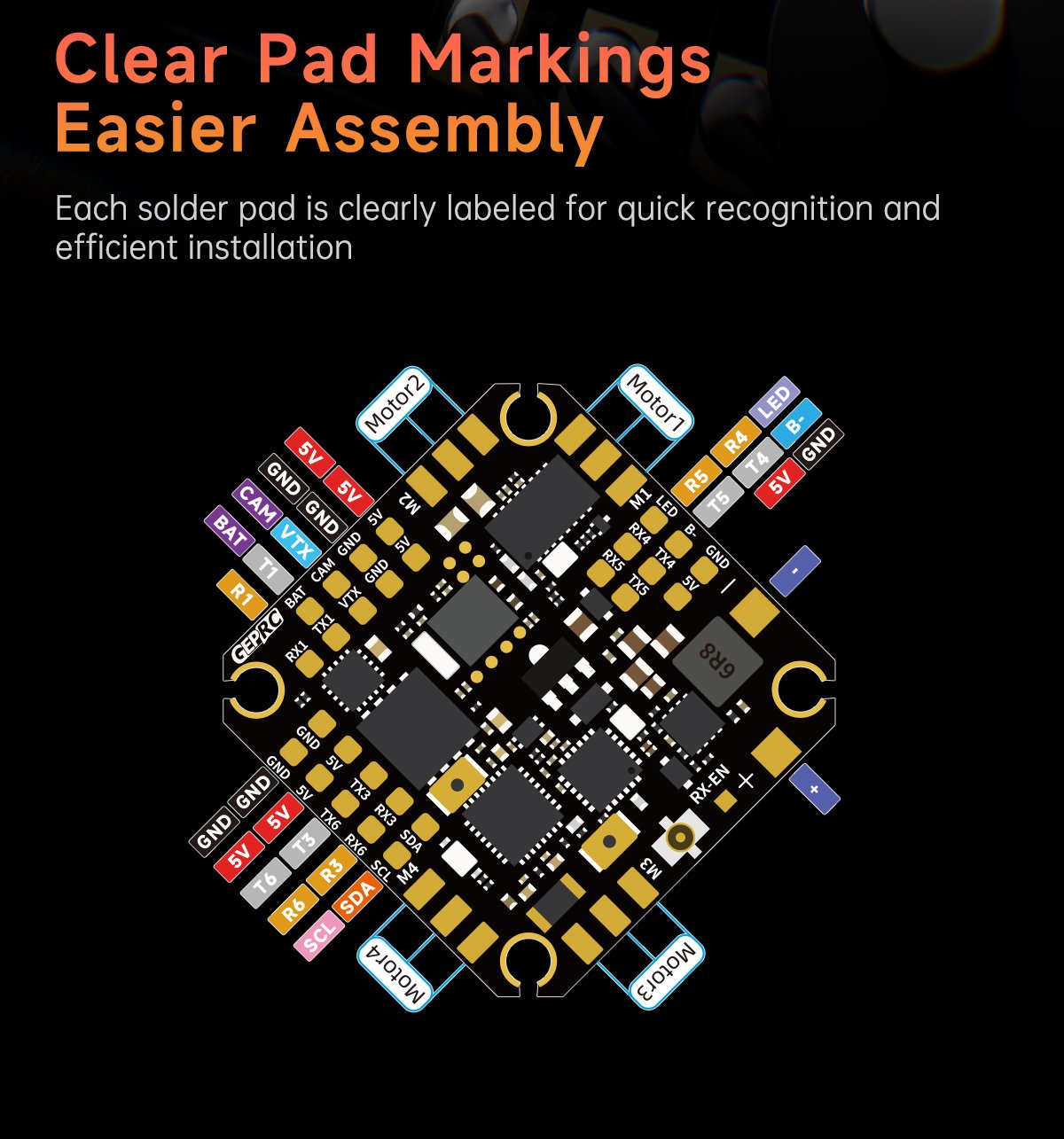

  • FC System: TAKER F405 20A ELRS2.4 2-4S AIO
  • MCU: STM32F405
  • Gyro: ICM42688-P
  • FC Firmware: GEPRC_TAKER_F405 AIO
  • Flash: 16MB
  • ESC: 8Bit 20A
  • Motor: SPEEDX2 1104 7500KV
  • Propellers: HQProp 2219-3
  • Power Connector: XT30U-M
  • VTX: DJI O4 Air Unit Pro
  • Camera: DJI O4 Air Unit Pro camera module
  • Antenna: DJI O4 Air Unit Pro antenna
  • Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G
  • Weight (ELRS 2.4G version): 126.8g
  • Recommended Battery: GEPRC Storm LiHV 3S 720mAh
  • Flight Time: 6min45s (tested under smooth cruising; actual flight time depends on flight style)

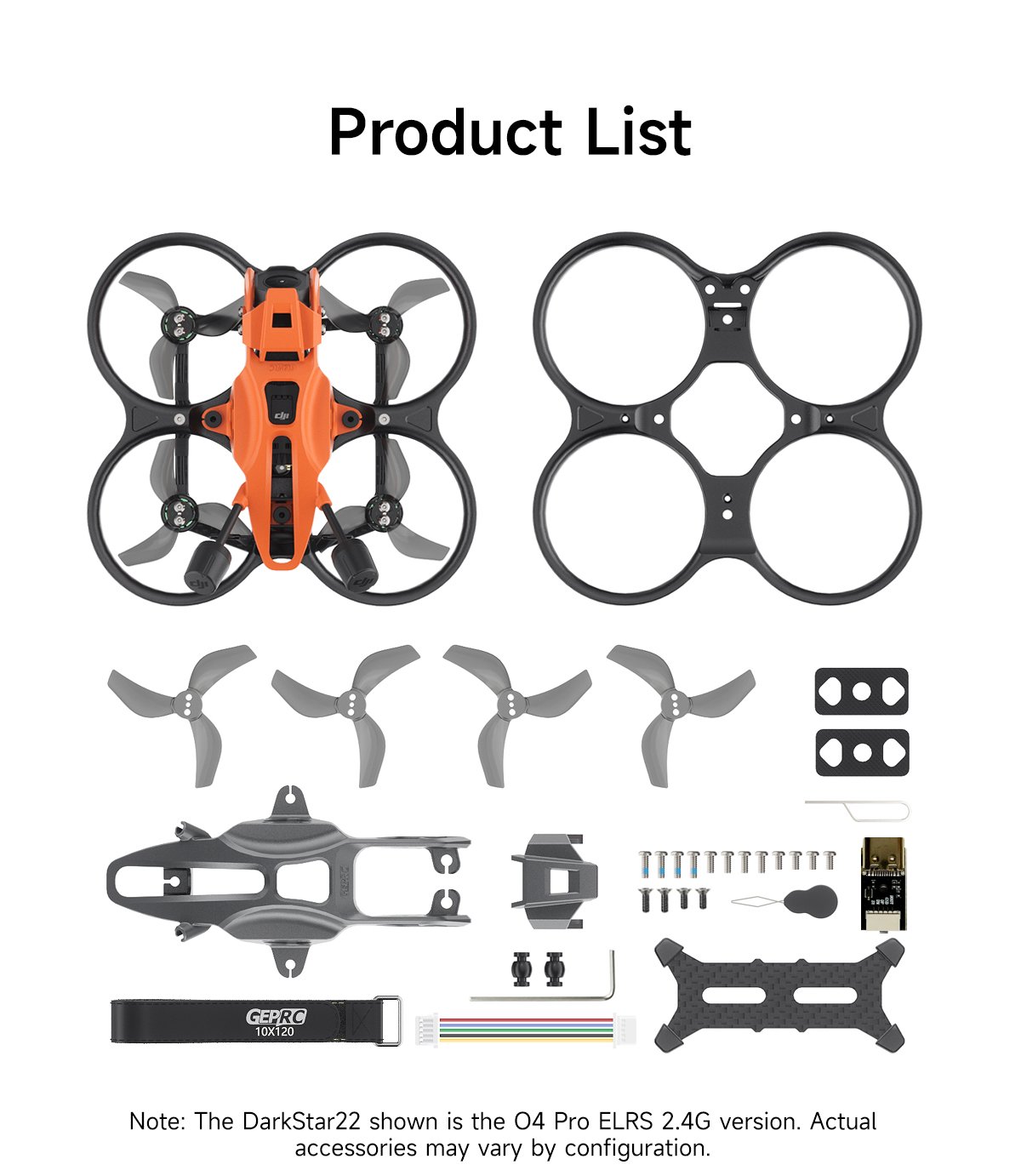

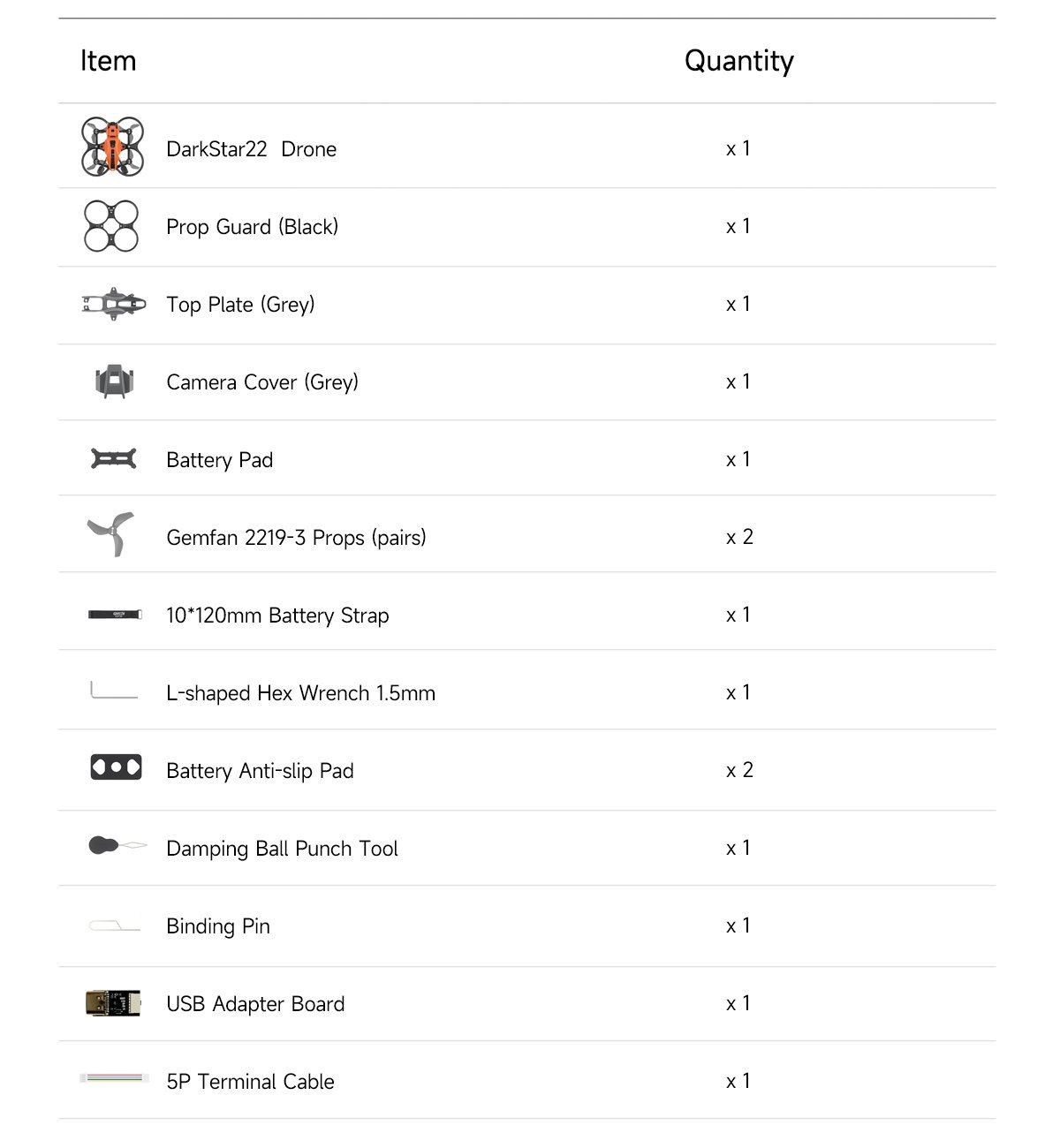

Includes

1 × DarkStar22 Drone

1 × Prop Guard

1 × Top Plate

1 × Camera Cover

1 × Battery Pad

2 × Propellers (pairs)

1 × 10*120mm Battery Strap

1 × L-shaped Hex Wrench 1.5mm

1 × Battery Anti-slip Pad

1 × Damping Ball Punch Tool

1 × Binding Pin

1 × USB Adapter Board

1 × 5P Terminal Cable

Spare Screw Pack Includes:

2 × Damping Balls

4 × M2*4 Round-head Screws

4 × M2*7 Round-head Screws

4 × M2*6 Countersunk Screws

4 × M2*5 Countersunk Screws

4 × M2*6 Round-head Screws

4 × M2*7 Countersunk Self-Tapping Screw






GEPRC DarkStar22 O4 Pro FPV Drone CineWhoop Quadcopter – A High-Performance FPV Experience
For FPV drone enthusiasts and aerial photographers alike, the GEPRC DarkStar22 O4 Pro FPV Drone CineWhoop Quadcopter is a top-tier choice that combines speed, agility, and cinematic capabilities in one compact package. Designed for both intermediate and advanced pilots, this drone is built to deliver an immersive flying experience with its powerful hardware and sleek, aerodynamic design. Whether you're racing through tight spaces or capturing stunning aerial footage, the GEPRC DarkStar22 is engineered to meet the demands of high-performance flight.
Sleek Design and Compact Build
The GEPRC DarkStar22 is a CineWhoop-style quadcopter, known for its small size and high maneuverability. Its compact frame allows it to navigate through tight spaces with ease, making it ideal for indoor flying, FPV racing, and cinematic shots in confined environments. The frame is constructed with high-quality materials that ensure durability without adding unnecessary weight. This balance between strength and lightness is essential for achieving the best flight performance and responsiveness.
Powerful Hardware for Maximum Performance
At the heart of the GEPRC DarkStar22 O4 Pro is the F405 20A AIO O4 Air Unit Pro, a high-performance flight controller that provides precise control and stability. This unit is designed to handle the high-speed maneuvers and rapid direction changes typical of FPV flying. The O4 Air Unit Pro is known for its reliability and advanced features, including support for a wide range of flight modes and sensor integration.
The drone is powered by 1104 7500KV motors, which deliver exceptional speed and acceleration. These motors are paired with high-quality propellers that are optimized for both speed and efficiency. The 3S battery configuration ensures a powerful and consistent energy supply, allowing for longer flight times and more dynamic performance.
Immersive FPV Experience
One of the standout features of the GEPRC DarkStar22 O4 Pro is its ability to provide an immersive FPV (First Person View) experience. Pilots can connect their goggles or screen to the drone and experience flight as if they were sitting in the cockpit. This level of immersion is perfect for those who want to push their flying skills to the next level or capture unique aerial perspectives.
The GEPRC DarkStar22 is compatible with a wide range of FPV cameras and video transmitters, allowing users to customize their setup according to their preferences. Whether you're looking for high-resolution footage or low-latency transmission, this drone supports the latest FPV technologies to ensure a smooth and responsive experience.
Perfect for Cinematic Flights
Thanks to its compact size and agile performance, the GEPRC DarkStar22 is also an excellent choice for cinematic flights. The drone's ability to maneuver through tight spaces and maintain stability in mid-air makes it ideal for capturing dynamic shots that would be difficult to achieve with larger drones. Whether you're filming a short movie, creating a vlog, or producing content for social media, the GEPRC DarkStar22 can help you achieve professional-quality results.
Easy to Assemble and Customize
While the GEPRC DarkStar22 O4 Pro is a high-performance drone, it is also designed with user-friendliness in mind. The drone comes with most of the essential components pre-assembled, making it easy to set up and get flying quickly. For those who enjoy building and customizing their drones, the GEPRC DarkStar22 offers a modular design that allows for easy upgrades and modifications.
Whether you're looking to improve the camera setup, upgrade the flight controller, or enhance the motor performance, the GEPRC DarkStar22 provides a solid foundation for customization. This flexibility makes it a popular choice among hobbyists and professionals who want to tailor their drone to their specific needs.
Durable and Reliable
Despite its small size, the GEPRC DarkStar22 is built to last. The frame is designed to absorb impact and reduce the risk of damage during crashes or hard landings. The use of high-quality components ensures that the drone can withstand the rigors of frequent use and high-speed flight. This durability is especially important for FPV pilots who often fly in challenging environments.
Ideal for Racing and Freestyle Flying
The GEPRC DarkStar22 O4 Pro is a favorite among FPV racers and freestyle pilots due to its speed, agility, and responsiveness. The combination of powerful motors, a high-performance flight controller, and a lightweight frame allows the drone to perform rapid turns, flips, and rolls with ease. Whether you're competing in a race or simply enjoying the thrill of freestyle flying, the GEPRC DarkStar22 delivers an exhilarating experience.
Great for Beginners and Experts Alike
While the GEPRC DarkStar22 is a high-performance drone, it is also suitable for pilots of all skill levels. Beginners can use it to learn the basics of FPV flying, while experienced pilots can push the limits of speed and maneuverability. The drone's stability and responsiveness make it easy to control, even for those who are new to FPV flying.
Conclusion
The GEPRC DarkStar22 O4 Pro FPV Drone CineWhoop Quadcopter is a top-tier choice for anyone looking to take their FPV experience to the next level. With its powerful hardware, compact design, and immersive flight capabilities, this drone is perfect for racing, freestyle flying, and cinematic shots. Whether you're a seasoned pilot or just starting out, the GEPRC DarkStar22 offers the performance, durability, and versatility you need to enjoy the thrill of FPV flying.
If you're looking for a high-performance, easy-to-fly, and customizable FPV drone, the GEPRC DarkStar22 O4 Pro is an excellent investment. With its advanced features and reliable performance, it's no wonder that the GEPRC DarkStar22 is one of the most popular choices among FPV enthusiasts around the world.
