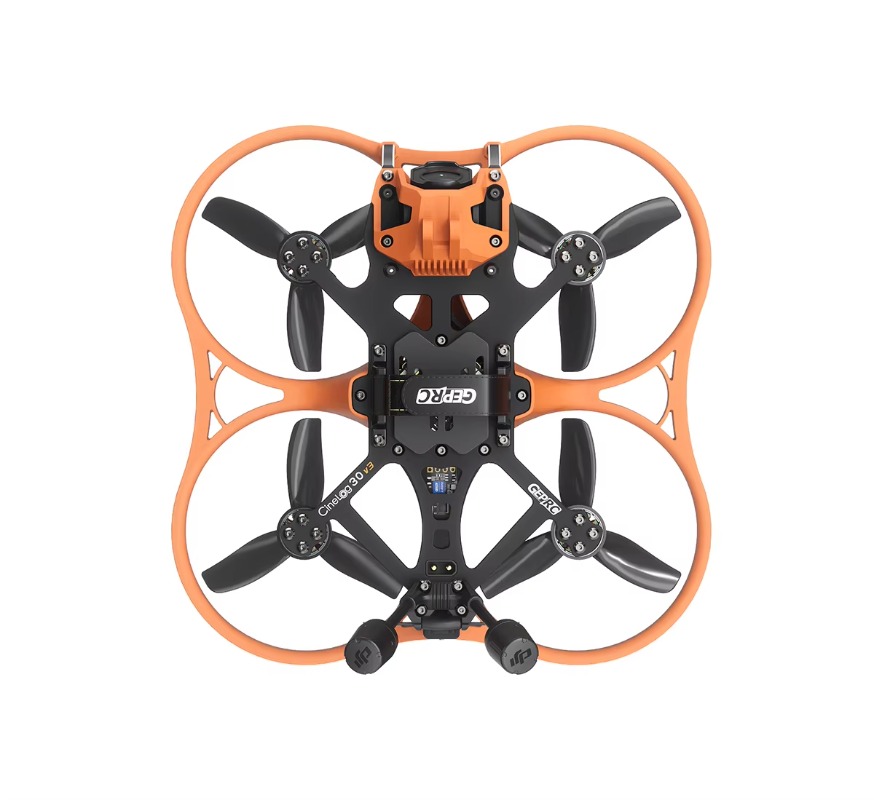

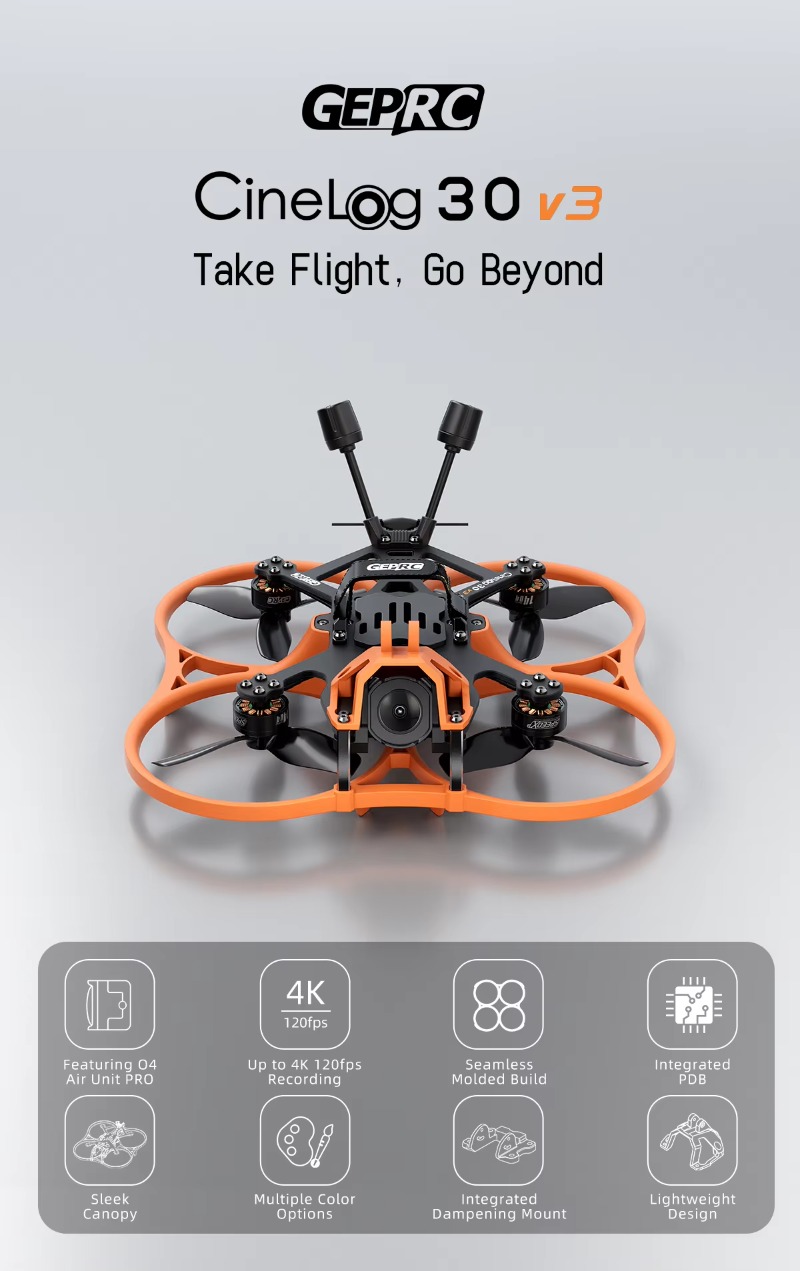

GEPRC Cinelog30 V3 O4 Pro - FPV Drone 3inch Cinewhoop Quadcopter F722 45A 32Bit AIO O4 AIR Unit Pro 1404 3850KV 4S

Description

Summary

The Cinelog30 V3 features the O4 Air Unit PRO VTX, delivering superior image quality with precise color accuracy and fine detail with its advanced processing chip.

The frame is reinforced with aluminum for added strength, while the electronic compartment is designed with a wrap-around structure to protect internal components better. Dust-proof plugs safeguard the data ports, and the canopy shields the camera from impacts. The rear PDB promotes clean wiring and an efficient layout.

Powered by the TAKER F722 45A 32-bit AIO, 1404 3850KV motors, HQprop DT76mm x3 props, and a LiHV 4S 720mAh battery, the Cinelog30 V3 achieves up to 8:10 of flight time. With O4's advanced imaging capabilities, it delivers smooth, high-quality cinematic footage.

Feature

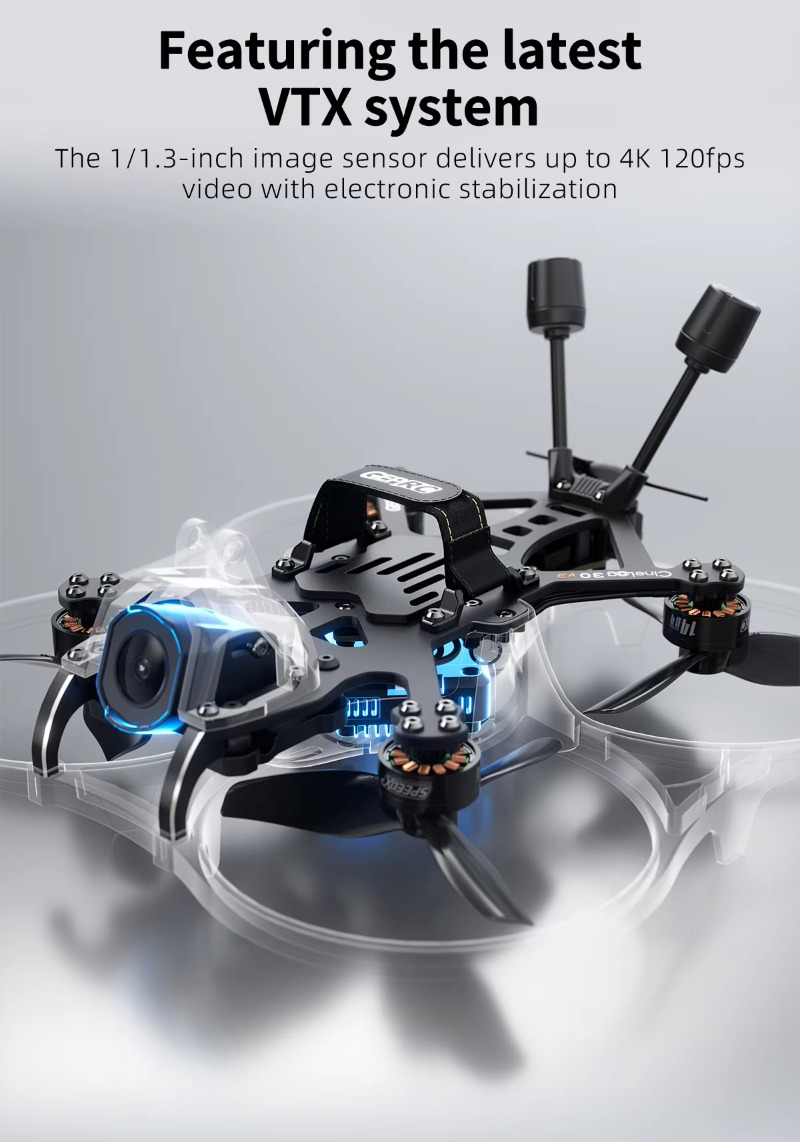

Equipped with the latest O4 Air Unit PRO, offering sharp detail, high resolution, and excellent low-light performance.

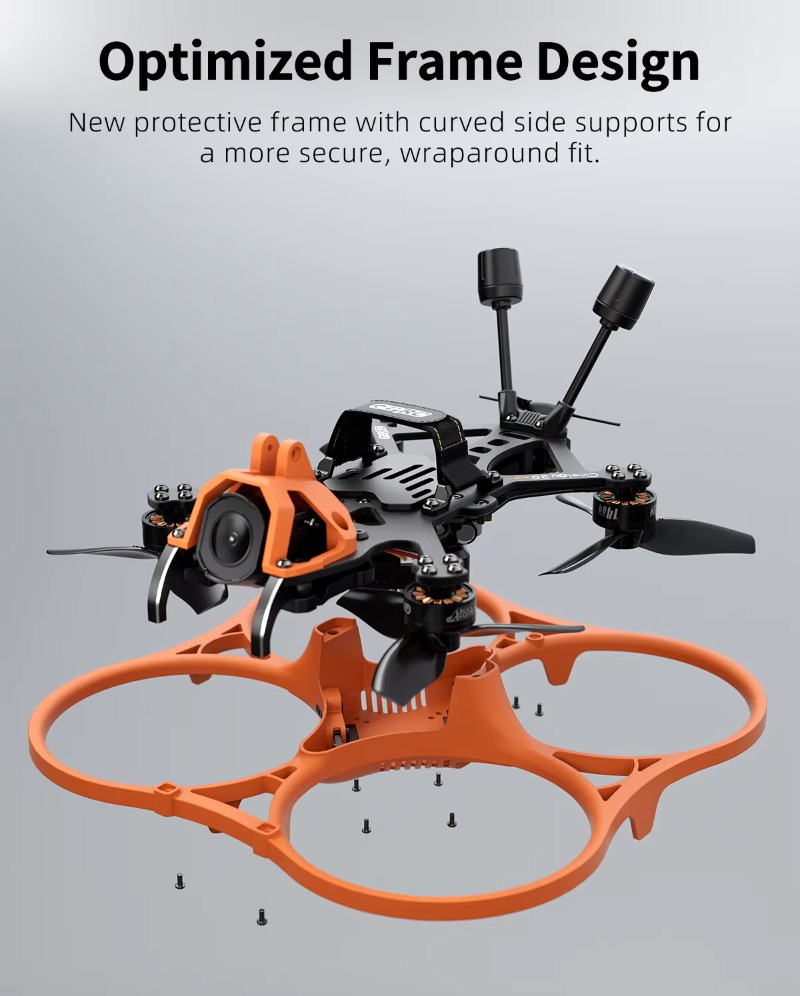

Refined frame with a wrap-around design for enhanced protection of electronic components.
Aluminum-reinforced front and protective frame for added strength.

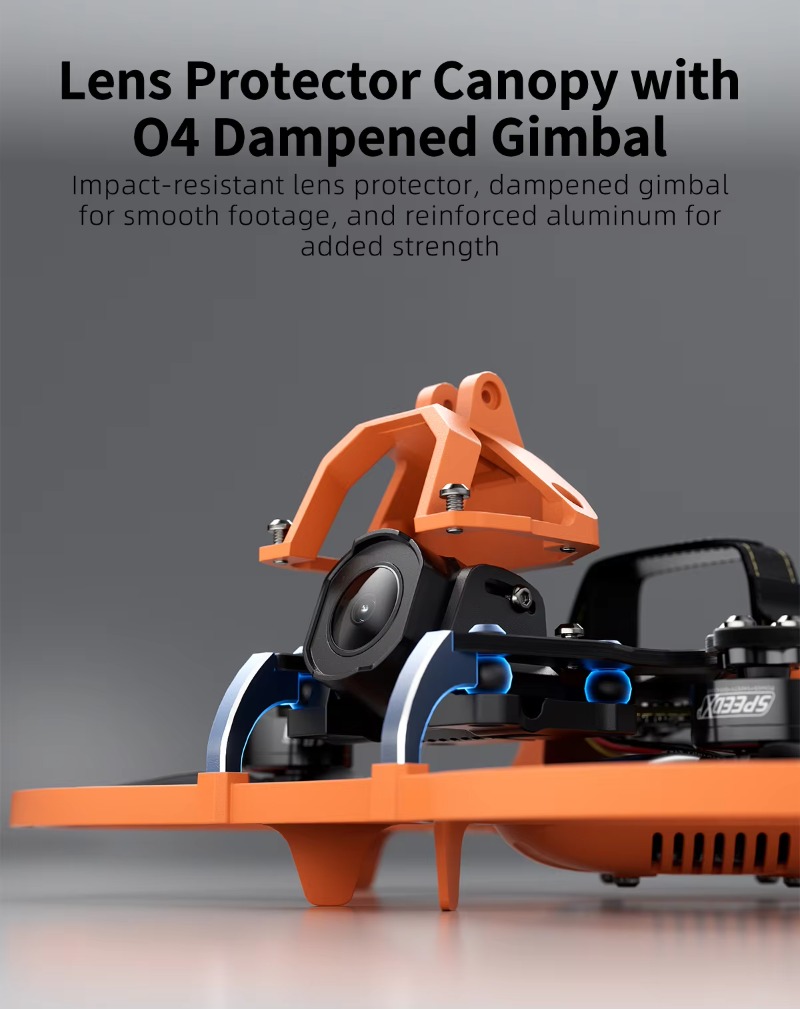

Sleek front cover to shield the O4 Air Unit PRO lens from impact.
Dust-proof plugs for data ports to prevent debris during takeoff and landing.

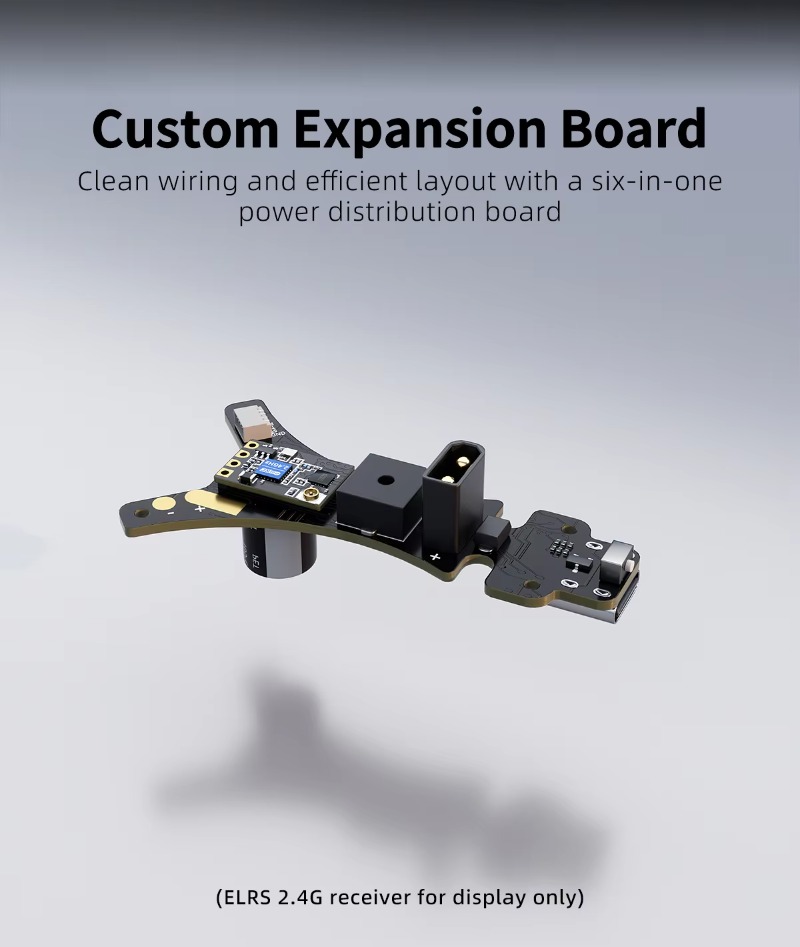

Custom PDB with receiver, buzzer, LED BEC, TVS, and anti-spark features.
Cinelog series underslung gimbal mount for stable, smooth footage with the O4 Air Unit PRO.
Precision-tuned PID settings by the GEPRC team for ultra-smooth, responsive flight control.

Specifications

Model: Cinelog30 V3 O4 Pro Quadcopter
Frame Model: GEP-CL30 V3
Carbon Fiber Plate Thickness: 2.5mm
Wheelbase: 128mm
Flight System: TAKER F722 45A 32Bit AIO
MCU: STM32F722RET6
Gyro: ICM 42688-P
FC Firmware: GEPRC_F722_AIO
Flash: 16MB
ESC: 32Bit 45A
Motor: SPEEDX2 1404 3850KV
Prop: HQprop DT76mmx3 V2
Battery Connector: XT30
VTX: O4 AIR Unit Pro
Camera: O4
Antenna: O4 original
Receiver: PNP(digital built-in VTS receiver) / ELRS2.4G / TBS NanoRX
TBS NanoRX Version Weight: 187±2g
Recommended Battery: LiHV 4S 660mAh-720mAh
Flight Time: 8'10″(Tested at slow cruising speeds; actual times may vary with flying method.)

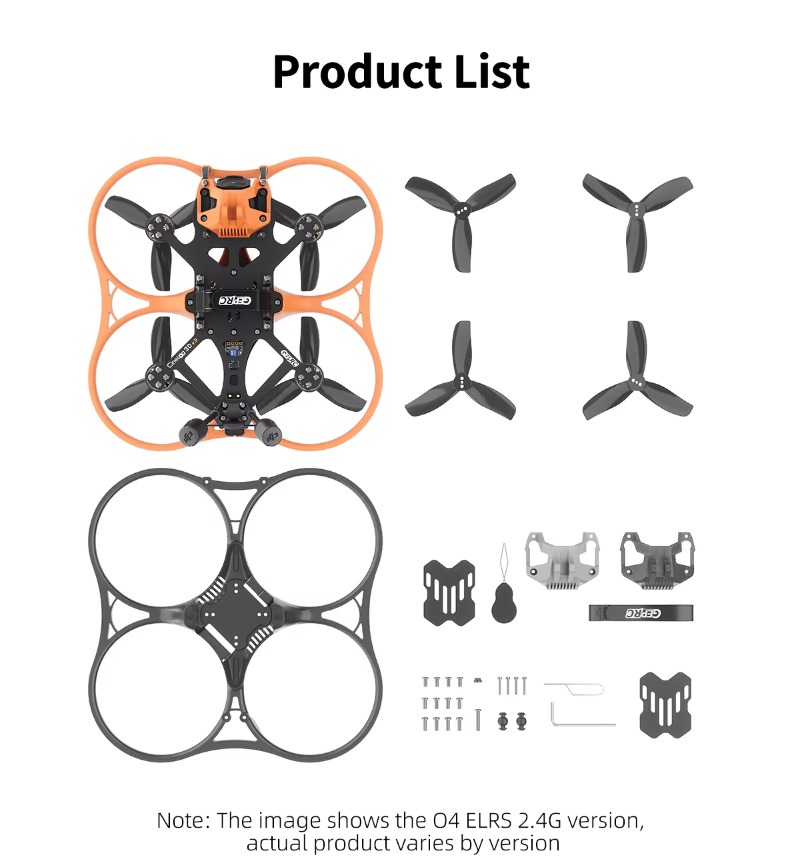

Includes

1 x Cinelog30 V3

1 x Protective Frame (transparent black)

2 x HQprop DT76mmx3 V2 (pair)

1 x 15*150mm Battery Strap

1 x L-shaped Screwdriver 1.5mm

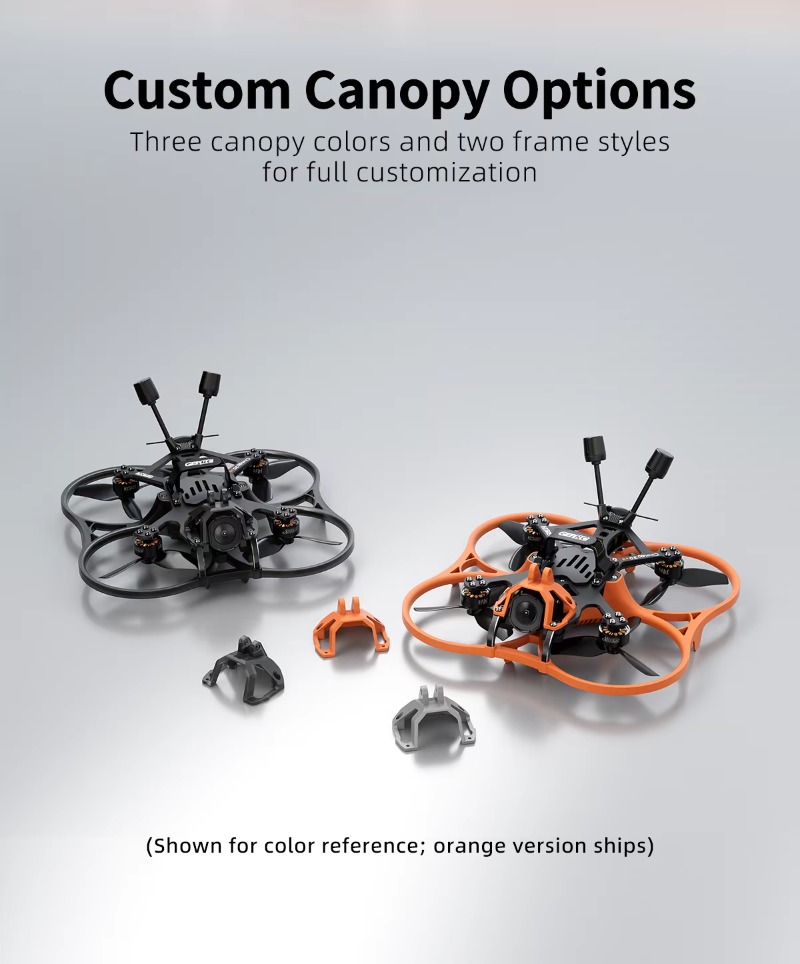

1 x Grey Canopy

1 x Black Canopy

1 x Spare Screw Pack

1 x Battery Anti-slip Pad

1 x Damping Ball Puncher

1 x Frequency Pairing Ejector pin

Spare screws pack includes

1 x M2 rivet nut
4 x M2*4.5 button-head hex socket screw
4 x M2*6 button-head hex socket screw
4 x M2*4 button-head hex socket screw
1 x M2*12 button-head screw
2 x Damping Ball

Model: Cinelog30 V3 O4 Pro QuadcopternFrame Model: GEP-CL30 V3nCarbon Fiber Plate Thickness: 2.5mmnWheelbase: 128mmnFlight System: TAKER F722 45A 32Bit AIOnMCU: STM32F722RET6nGyro: ICM 42688-PnFC Firmware: GEPRC_F722_AIOnFlash: 16MBnESC: 32Bit 45AnMotor: SPEEDX2 1404 3850KVnProp: HQprop DT76mmx3 V2nBattery Connector: XT30nVTX: O4 AIR Unit PronCamera: O4nAntenna: O4 originalnReceiver: PNP(digital built-in VTS receiver) / ELRS2.4G / TBS NanoRXnTBS NanoRX Version Weight: 187±2gnRecommended Battery: LiHV 4S 660mAh-720mAhnFlight Time: 8'10(Test results may vary)nRecommended Age: 14+ynnn|Cinelog 30 V3|Cinelog 30 V3 O4 Pro|Cinelog 30 V3 O4|nn**Unmatched Video Quality**nCapture cinematic footage with the GEPRC Cinelog30 V3 O4 Pro, featuring the advanced O4 Air Unit Pro VTX. This quadcopter's VTX delivers superior image quality, precise color accuracy, and fine detail, ensuring your aerial shots are as professional as they are breathtaking. Whether you're a seasoned pilot or a hobbyist, the Cinelog30 V3 O4 Pro is designed to enhance your cinematic experience.nn**Robust Build and Performance**nThe GEPRC Cinelog30 V3 O4 Pro is not just about video quality; it's also about durability and performance. With its reinforced aluminum frame, the quadcopter can withstand the rigors of flight, while the electronic compartment's wrap-around design offers superior protection. The dust-proof plugs safeguard the data ports, and the canopy shields the camera, ensuring your equipment remains pristine during takeoff and landing. The rear PDB is designed for clean wiring and efficient layout, promoting optimal performance and longevity.nn**Optimized for Cinematic Flight**nThe Cinelog30 V3 O4 Pro is tailored for the avid filmmaker. The TAKER F722 45A 32-bit AIO, 1404 3850KV motors, and HQprop DT76mm x3 props work in harmony to achieve up to 8:10 of flight time, giving you ample time to capture that perfect shot. The O4 Air Unit PRO's advanced imaging capabilities ensure that your cinematic footage is smooth, high-quality, and free from distortion. Whether you're a professional or a hobbyist, the GEPRC Cinelog30 V3 O4 Pro is a tool that will elevate your cinematic drone flights to new heights.
